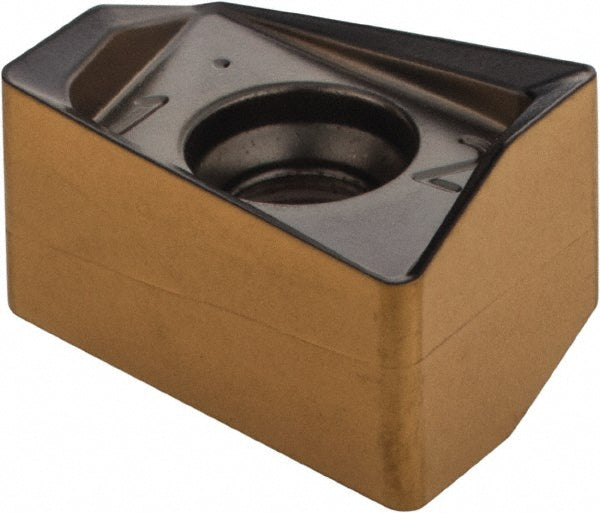

H490 ANKX 120508PNTR Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5605564

Iscar

H490 ANKX 120508PNTR Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5605564

MFR# 5605564ISO/ANSI# H490 ANKX 120508PNTRCat# H490 ANKX 120508PNTR IC830Series HELIDO

$25.68List $32.90 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIC830
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 5605564 is a H490 ANKX 120508PNTR solid carbide indexable insert, grade IC830, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeH490 ANKX 120508PNTR IC830
Chip breakerPNTR
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityH490 ANK12
Cutting edge effective length0.4330
Cutting edge styleHelical
Included angle degree85
Inscribed circle0.3940
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size12
Insert size code120508
Insert styleANKX
Iso codeH490 ANKX 120508PNTR
Length0.5382
Length range0.5000 to 0.6000
Manufacturers catalog numberH490 ANKX 120508PNTR IC830
Manufacturer gradeIC830
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.4330
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.3600
Thickness range0.3500 to 0.5000
Width0.3940
