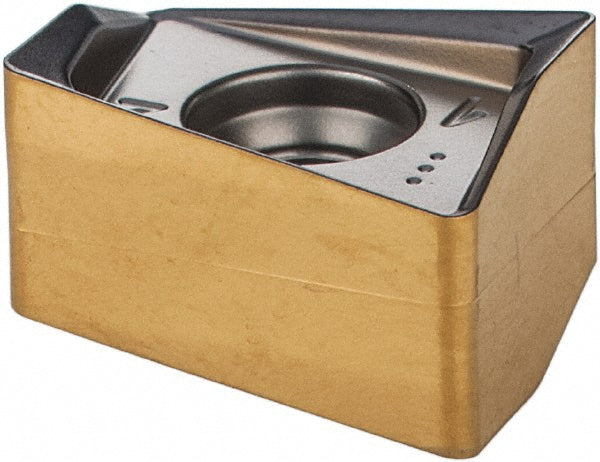

H490 ANKX 120508PNTR Solid Carbide Insert, Grade IC808, TiAlN - Iscar 5605566

Iscar

H490 ANKX 120508PNTR Solid Carbide Insert, Grade IC808, TiAlN - Iscar 5605566

MFR# 5605566ISO/ANSI# H490 ANKX 120508PNTRCat# H490 ANKX 120508PNTR IC808Series HELIDO

$26.14List $32.90 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Sold in multiples of 10 — minimum order 10

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIC808
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5605566 is a H490 ANKX 120508PNTR solid carbide indexable insert, grade IC808, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Ansi codeH490 ANKX 120508PNTR IC808
Chip breakerPNTR
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityH490 ANK12
Cutting edge effective length0.4330
Cutting edge styleHelical
Included angle degree85
Inscribed circle0.3940
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size12
Insert size code120508
Insert styleANKX
Iso codeH490 ANKX 120508PNTR
Length0.5382
Length range0.5000 to 0.6000
Manufacturers catalog numberH490 ANKX 120508PNTR IC808
Manufacturer gradeIC808
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.4330
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.3600
Thickness range0.3500 to 0.5000
Width0.3940
