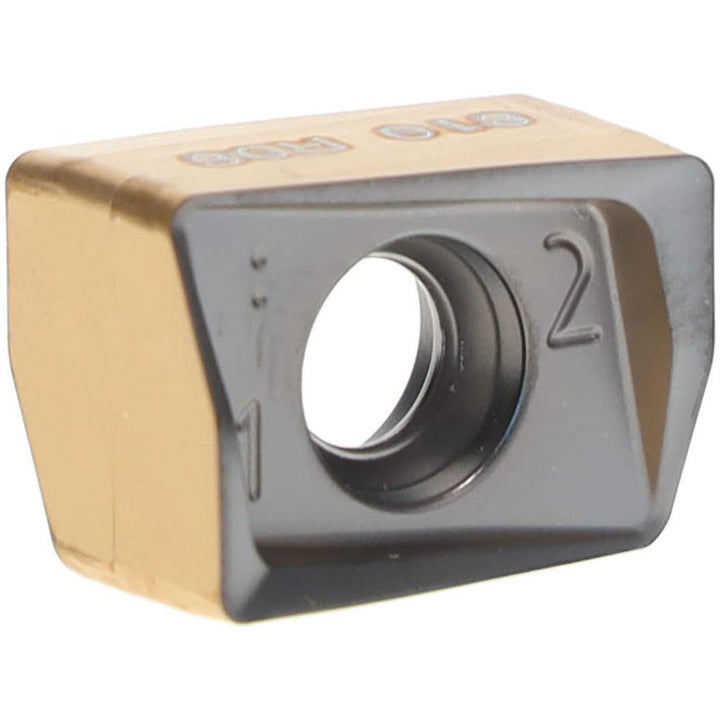

H490 ANKX 120508PNTR Solid Carbide Insert, Grade IC810, AlTiCrN - Iscar 5605567

Iscar

H490 ANKX 120508PNTR Solid Carbide Insert, Grade IC810, AlTiCrN - Iscar 5605567

MFR# 5605567ISO/ANSI# H490 ANKX 120508PNTRCat# H490 ANKX 120508PNTR IC810Series HELIDO

$25.68List $32.90 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIC810
MaterialSolid Carbide
CoatingAlTiCrN

Description

The Iscar 5605567 is a H490 ANKX 120508PNTR solid carbide indexable insert, grade IC810, AlTiCrN coated. Suited for steel, cast iron.

Specifications

Ansi codeH490 ANKX 120508PNTR IC810
Chip breakerPNTR
Coating finishAlTiCrN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityH490 ANK12
Cutting edge effective length0.4330
Cutting edge styleHelical
Included angle degree85
Inscribed circle0.3940
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size12
Insert size code120508
Insert styleANKX
Iso codeH490 ANKX 120508PNTR
Length0.5382
Length range0.5000 to 0.6000
Manufacturers catalog numberH490 ANKX 120508PNTR IC810
Manufacturer gradeIC810
Material applicationSteel; Cast Iron
Material gradeP45; K40
Maximum depth of cut0.4330
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.3600
Thickness range0.3500 to 0.5000
Width0.3940
