Iscar

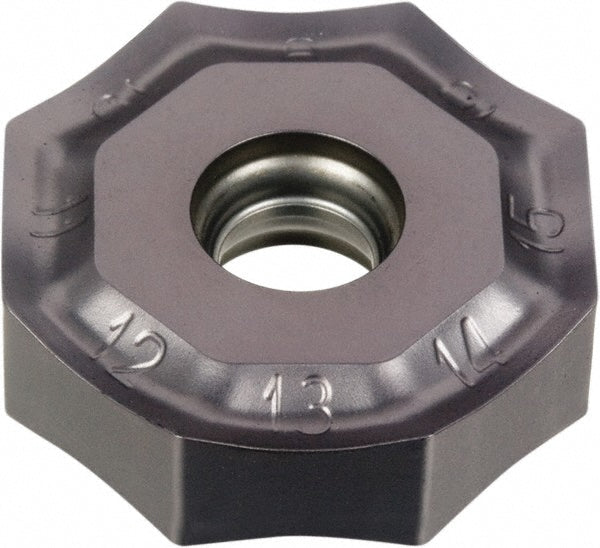

ONHU 080608 AN-N-HP Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5605614
MFR# 5605614ISO/ANSI# ONHU 080608 AN-N-HPCat# ONHU 080608 AN-N-HP IC928Series 16MILL
$36.87List $46.40
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeOctagon
GradeIC928
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5605614 is a ONHU 080608 AN-N-HP solid carbide indexable insert, grade IC928, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeONHU 080608 AN-N-HP IC928
Chip breakerHP
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityF45NM; F45WG
Cutting edge effective length0.2170
Cutting edge styleHoned
Included angle degree135
Inscribed circle0.7953
Inscribed circle range0.7000 to 1.0000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size08
Insert size code080608
Insert styleONHU
Iso codeONHU 080608 AN-N-HP
Length0.7953
Length range0.7000 to 0.9000
Manufacturers catalog numberONHU 080608 AN-N-HP IC928
Manufacturer gradeIC928
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.2170
Multi use toolYes
Number of cutting edges16
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle45
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.2360
Thickness range0.2350 to 0.2500
Width0.7953
