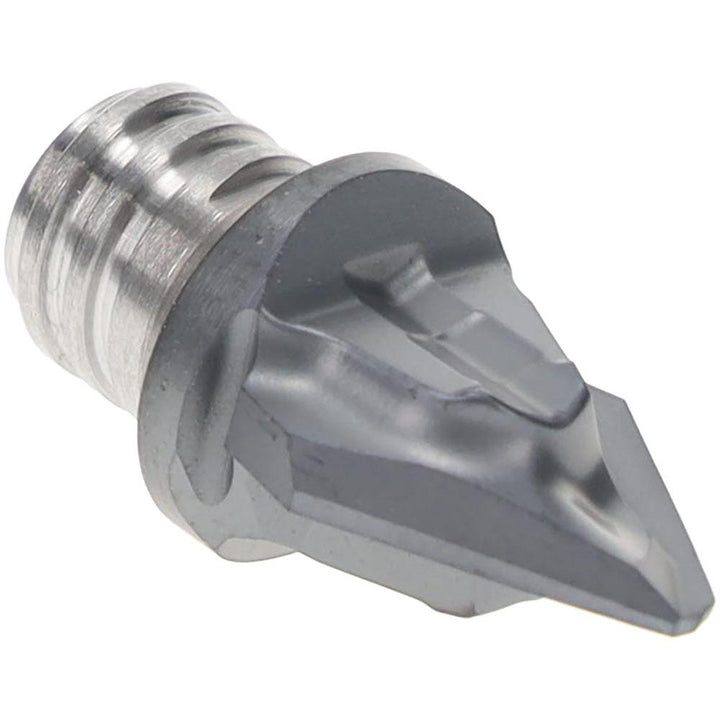

Carbide Insert, Grade IC908, TiAlN - Iscar 5605659

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5605659

MFR# 5605659Series MM HCD

$78.94List $101.10 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN

Description

The Iscar 5605659 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle30degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.0591
Cutting width0.0591in
Extension from holder in0.6063
Functional length0.6068
Included angle degree140
Insert handRight Hand
Insert size120-060
Lead angle60
Length of cut0.4334in
Manufacturers catalog number5605659
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.3641
Milling tip full descriptionMM HCD120-060-2T08
Milling tip styleMM HCD
Milling tip typeChamfer
Number of flutes2
Overall length0.6068in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
