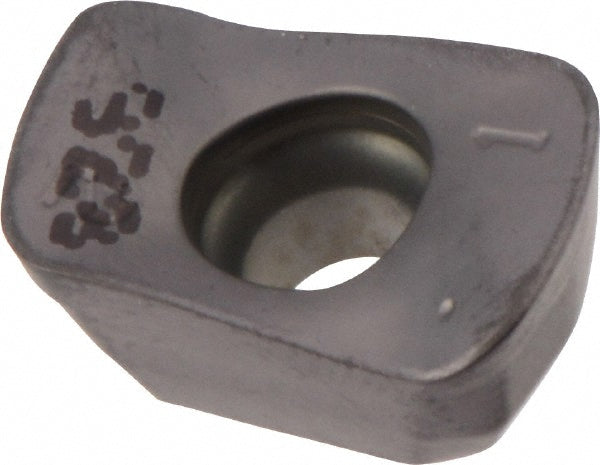

ADKT 1505R8T-FF Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5605785

Iscar

ADKT 1505R8T-FF Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5605785

MFR# 5605785ISO/ANSI# ADKT 1505R8T-FFCat# ADKT 1505R8T-FF IC928Series HELIMILL

$26.54List $34.00 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIC928
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5605785 is a ADKT 1505R8T-FF solid carbide indexable insert, grade IC928, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeADKT 1505R8T-FF IC928
Chip breakerFF
Coating finishTiAlN
Coating processPVD
Corner radius0.1063
Cutter series compatibilityHM90-15
Cutting edge effective length0.0590
Cutting edge styleT-Land
Included angle degree85
Inscribed circle0.3900
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size15
Insert size code1505
Insert styleADKT
Iso codeADKT 1505R8T-FF
Length0.6260
Length range0.6000 to 0.6500
Manufacturers catalog numberADKT 1505R8T-FF IC928
Manufacturer gradeIC928
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.0590
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle15
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2440
Thickness range0.2350 to 0.2500
Width0.3900
