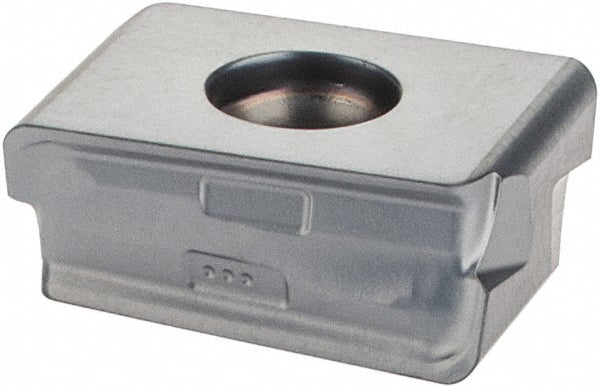

HTP LNHT 1606 ER Solid Carbide Insert, Grade IC328, TiCN - Iscar 5605790

Iscar

HTP LNHT 1606 ER Solid Carbide Insert, Grade IC328, TiCN - Iscar 5605790

MFR# 5605790ISO/ANSI# HTP LNHT 1606 ERCat# HTP LNHT 1606 ER IC328Series TANGPLUNGE

$36.07List $46.20 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeButterfly
GradeIC328
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5605790 is a HTP LNHT 1606 ER solid carbide indexable insert, grade IC328, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeHTP LNHT 1606 ER IC328
Chip breakerER
Coating finishTiCN
Coating processPVD
Corner radius in3/64
Cutter series compatibilityHTP LN16
Cutting edge effective length0.6496
Cutting edge styleHoned
Included angle degree90
Inscribed circle0.2560
Inscribed circle range0.2500 to 0.3000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeButterfly
Insert size16
Insert size code1606
Insert styleLNHT
Iso codeHTP LNHT 1606 ER
Length0.6496
Length range0.6000 to 0.6500
Manufacturers catalog numberHTP LNHT 1606 ER IC328
Manufacturer gradeIC328
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC2; C3; C5; C6
Maximum depth of cut0.6496
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.4750
Thickness range0.3500 to 0.5000
Width0.2560
