Iscar

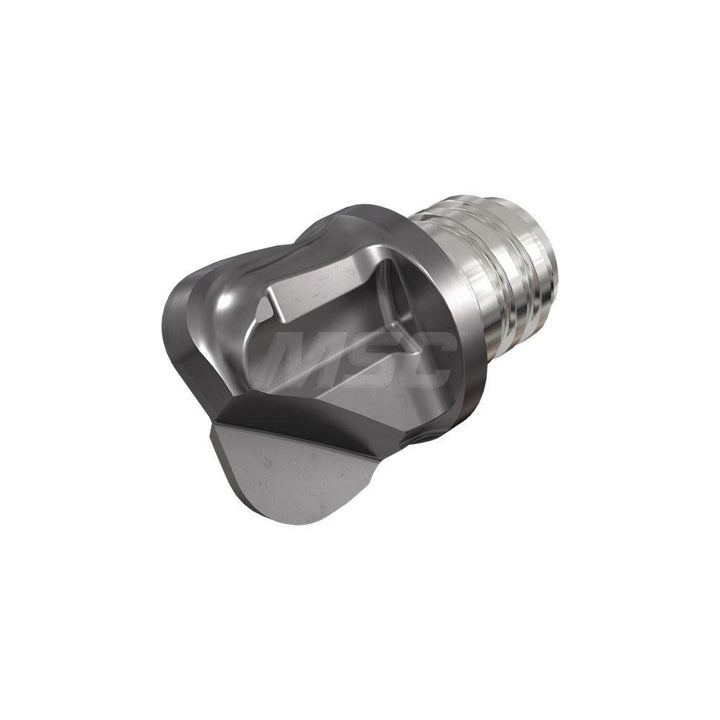

Carbide Insert, Grade IC908, TiAlN - Iscar 5605797
MFR# 5605797Series Multimaster
$87.45List $112.00
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN
Description
The Iscar 5605797 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for universal.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.1180
Cutting diameter0.4724
Extension from holder in0.4370
Manufacturer gradeIC908
Maximum depth of cut0.209
Milling tip full descriptionBall Nose
Milling tip styleMM HT-NWFR
Milling tip typeBall Nose
Number of flutes2
Primary workpiece materialUniversal
StandardsANSI
Thread sizeT08
Tool materialCarbide
