Iscar

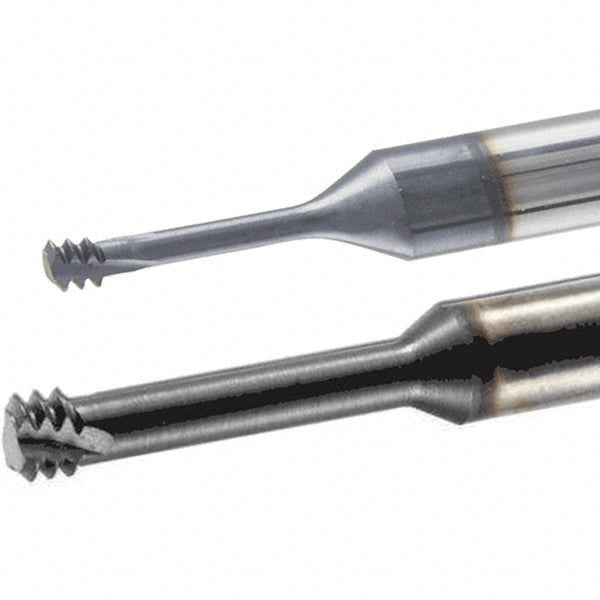

Helical Flute Thread Mills - Iscar 5605836
MFR# 5605836
$189.55List $243.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/16-18
CoatingTiAlN
Description
The Iscar 5605836 helical flute thread mills.
Specifications
Coating finishTiAlN
Coolant throughNo
Cutting diameter0.2360
Flute directionRight Hand
Length of cut0.9100
MaterialSolid Carbide
Minimum nominal diameter in0.3125
Number of flutes3
Overall length2.5000
Shank diameter0.2500
Teeth per inch18
Thread size in5/16-18
Thread standardUNC
Thread typeInternal
