Iscar

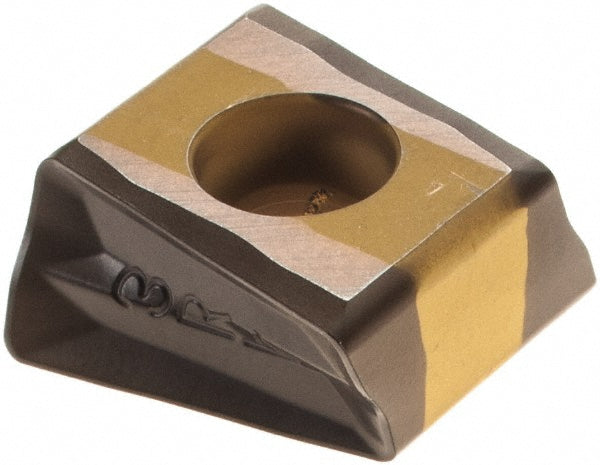

T490 LNMT 1306PNTR Solid Carbide Insert, Grade IC5100, TiCN - Iscar 5605883
MFR# 5605883ISO/ANSI# T490 LNMT 1306PNTRCat# T490 LNMT 1306PNTR IC5100Series HELITANG
$28.37List $35.70
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeButterfly
GradeIC5100
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5605883 is a T490 LNMT 1306PNTR solid carbide indexable insert, grade IC5100, TiCN coated. Suited for cast iron.
Specifications
Ansi codeT490 LNMT 1306PNTR IC5100
Chip breakerPNTR
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityT490 LNK13
Cutting edge effective length0.5409
Cutting edge styleHelical
Included angle degree90
Inscribed circle0.2620
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeButterfly
Insert size13
Insert size code1306
Insert styleLNMT
Iso codeT490 LNMT 1306PNTR
Length0.5409
Length range0.5000 to 0.6000
Manufacturers catalog numberT490 LNMT 1306PNTR IC5100
Manufacturer gradeIC5100
Material applicationCast Iron
Maximum depth of cut0.4920
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.5140
Thickness range0.5000+
Width0.2620
