Iscar

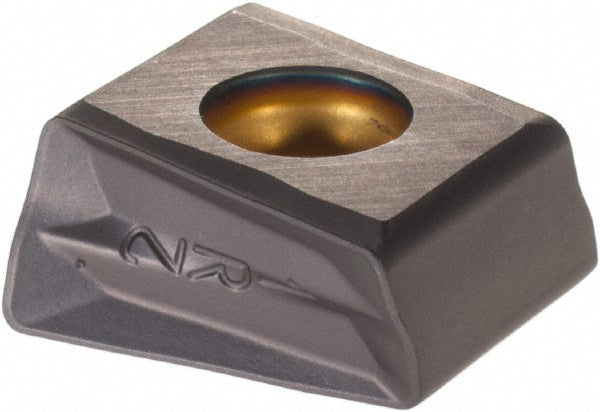

T490 LNMT 1306PNTR Solid Carbide Insert, Grade DT7150, Al2O3 - Iscar 5605884
MFR# 5605884ISO/ANSI# T490 LNMT 1306PNTRCat# T490 LNMT 1306PNTR DT7150Series HELITANG
$25.76List $33.00
Save 21%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeButterfly
GradeDT7150
MaterialSolid Carbide
CoatingAl2O3
Description
The Iscar 5605884 is a T490 LNMT 1306PNTR solid carbide indexable insert, grade DT7150, Al2O3 coated. Suited for cast iron, hard material.
Specifications
Ansi codeT490 LNMT 1306PNTR DT7150
Chip breakerPNTR
Coating finishAl2O3
Coating processMTCVD; PVD
Corner radius in1/32
Cutter series compatibilityT490 LNK13
Cutting edge effective length0.5409
Cutting edge styleHelical
Included angle degree90
Inscribed circle0.2620
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeButterfly
Insert size13
Insert size code1306
Insert styleLNMT
Iso codeT490 LNMT 1306PNTR
Length0.5409
Length range0.5000 to 0.6000
Manufacturers catalog numberT490 LNMT 1306PNTR DT7150
Manufacturer gradeDT7150
Material applicationCast Iron; Hard Material
Maximum depth of cut0.4920
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron; Hard Material
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.5140
Thickness range0.5000+
Width0.2620
