Carbide Insert, Grade IC903, TiAlN - Iscar 5605926

Iscar

Carbide Insert, Grade IC903, TiAlN - Iscar 5605926

MFR# 5605926Series MM HRF

$85.65List $109.70 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeIC903
CoatingTiAlN

Description

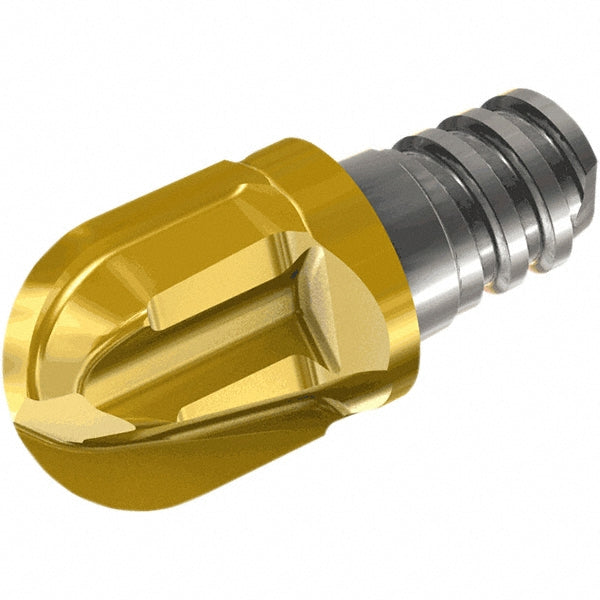

The Iscar 5605926 is a carbide indexable insert, grade IC903, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.3750
Cutting width0.3750in
Extension from holder in0.4800
Functional length0.4800
Included angle degree90
Insert handRight Hand
Insert size.375
Lead angle90
Length of cut0.3800in
Manufacturers catalog number5605926
Manufacturer gradeIC903
Material gradeUltra Fine Grain
Maximum depth of cut0.3800
Milling tip full descriptionMM HRF.375-2T06
Milling tip styleMM HRF
Milling tip typeBall Nose
Number of flutes2
Overall length0.4800in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
