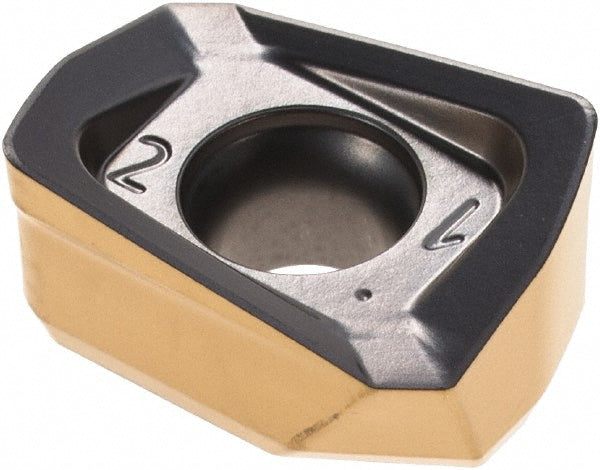

H490 ANKX 1706R15T-FF Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5605989

Iscar

H490 ANKX 1706R15T-FF Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5605989

MFR# 5605989ISO/ANSI# H490 ANKX 1706R15T-FFCat# H490 ANKX 1706R15T-FF IC830Series HELIDO

$39.28List $50.30 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIC830
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 5605989 is a H490 ANKX 1706R15T-FF solid carbide indexable insert, grade IC830, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeH490 ANKX 1706R15T-FF IC830
Chip breakerFF
Coating finishAlTiN
Coating processPVD
Corner radius0.0630
Cutter series compatibilityH490 ANK17
Cutting edge effective length0.0790
Cutting edge styleHelical
Included angle degree85
Inscribed circle0.4610
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size17
Insert size code1706
Insert styleANKX
Iso codeH490 ANKX 1706R15T-FF
Length0.6610
Length range0.6500 to 0.7000
Manufacturers catalog numberH490 ANKX 1706R15T-FF IC830
Manufacturer gradeIC830
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.0790
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.3070
Thickness range0.2500 to 0.3500
Width0.4610
