Iscar

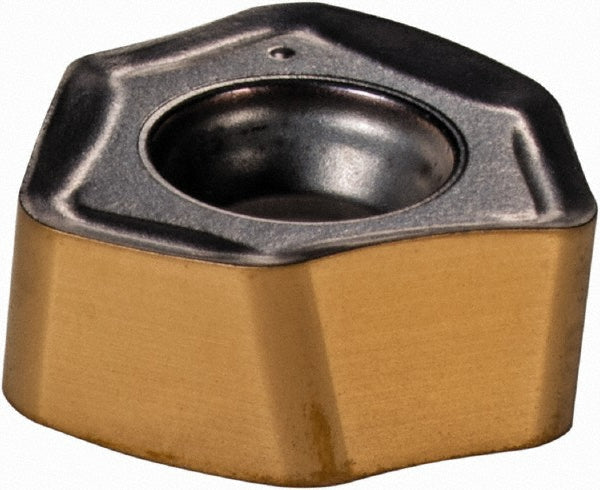

H600 WXCU 05T312HP Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5606000
MFR# 5606000ISO/ANSI# H600 WXCU 05T312HPCat# H600 WXCU 05T312HP IC830Series HELI6FEED
$33.53List $42.20
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC21/64
ShapeTrigon
GradeIC830
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 5606000 is a H600 WXCU 05T312HP solid carbide indexable insert, grade IC830, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeH600 WXCU 05T312HP IC830
Chip breakerHP
Coating finishAlTiN
Coating processPVD
Corner radius in3/64
Cutter series compatibilityFWX; EWX
Cutting edge effective length0.2165
Cutting edge styleSharp
Included angle degree80
Inscribed circle in21/64
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size05
Insert size code05T312
Insert styleWXCU
Iso codeH600 WXCU 05T312HP
Length in21/64
Length range0.3200 to 0.4000
Manufacturers catalog numberH600 WXCU 05T312HP IC830
Manufacturer gradeIC830
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.2165
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.1650
Thickness range0.1500 to 0.1750
Width in21/64
