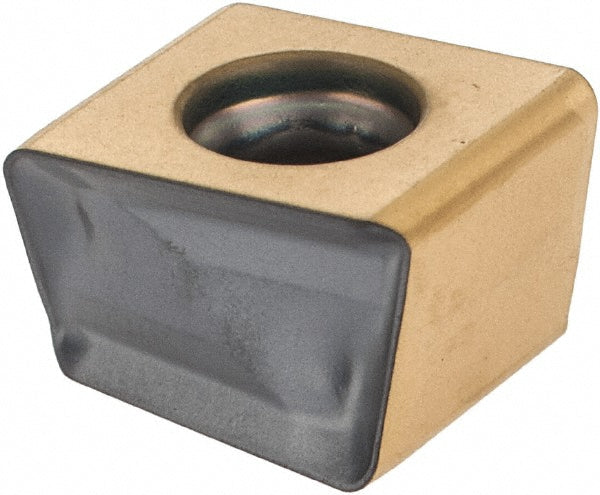

HTP LNHT 1006 ER Solid Carbide Insert, Grade IC810, AlTiCrN - Iscar 5606003

Iscar

HTP LNHT 1006 ER Solid Carbide Insert, Grade IC810, AlTiCrN - Iscar 5606003

MFR# 5606003ISO/ANSI# HTP LNHT 1006 ERCat# HTP LNHT 1006 ER IC810Series TANGPLUNGE

$30.77List $39.40 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeButterfly
GradeIC810
MaterialSolid Carbide
CoatingAlTiCrN

Description

The Iscar 5606003 is a HTP LNHT 1006 ER solid carbide indexable insert, grade IC810, AlTiCrN coated. Suited for steel, cast iron.

Specifications

Ansi codeHTP LNHT 1006 ER IC810
Chip breakerER
Coating finishAlTiCrN
Coating processPVD
Corner radius0.0394
Cutter series compatibilityHTP LN10
Cutting edge effective length0.3350
Cutting edge styleHoned
Included angle degree90
Inscribed circle0.2560
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeButterfly
Insert size10
Insert size code1006
Insert styleLNHT
Iso codeHTP LNHT 1006 ER
Length0.4134
Length range0.4000 to 0.4500
Manufacturers catalog numberHTP LNHT 1006 ER IC810
Manufacturer gradeIC810
Material applicationSteel; Cast Iron
Maximum depth of cut0.3350
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle29
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness in25/64
Thickness range0.3500 to 0.5000
Width0.2560
