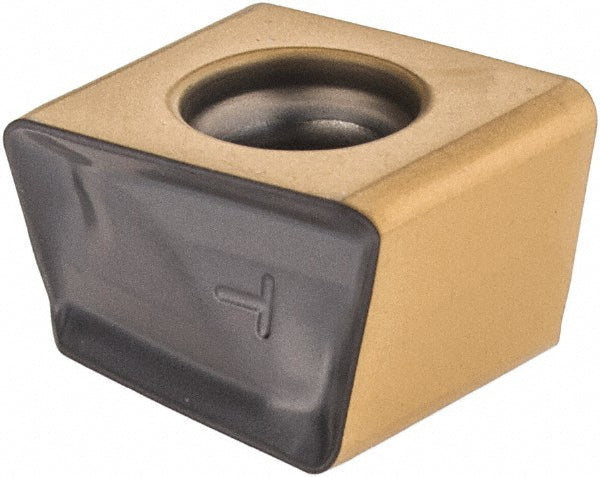

HTP LNHT 1006 ETR Solid Carbide Insert, Grade IC808, TiAlN - Iscar 5606006

Iscar

HTP LNHT 1006 ETR Solid Carbide Insert, Grade IC808, TiAlN - Iscar 5606006

MFR# 5606006ISO/ANSI# HTP LNHT 1006 ETRCat# HTP LNHT 1006 ETR IC808Series TANGPLUNGE

$31.31List $39.40 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Sold in multiples of 10 — minimum order 10

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeButterfly
GradeIC808
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5606006 is a HTP LNHT 1006 ETR solid carbide indexable insert, grade IC808, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Ansi codeHTP LNHT 1006 ETR IC808
Chip breakerETR
Coating finishTiAlN
Coating processPVD
Corner radius0.0394
Cutter series compatibilityHTP LN10
Cutting edge effective length0.3350
Cutting edge styleChamfered; Honed
Included angle degree90
Inscribed circle0.2560
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeButterfly
Insert size10
Insert size code1006
Insert styleLNHT
Iso codeHTP LNHT 1006 ETR
Length0.4134
Length range0.4000 to 0.4500
Manufacturers catalog numberHTP LNHT 1006 ETR IC808
Manufacturer gradeIC808
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.3350
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness in25/64
Thickness range0.3500 to 0.5000
Width0.2560
