Iscar

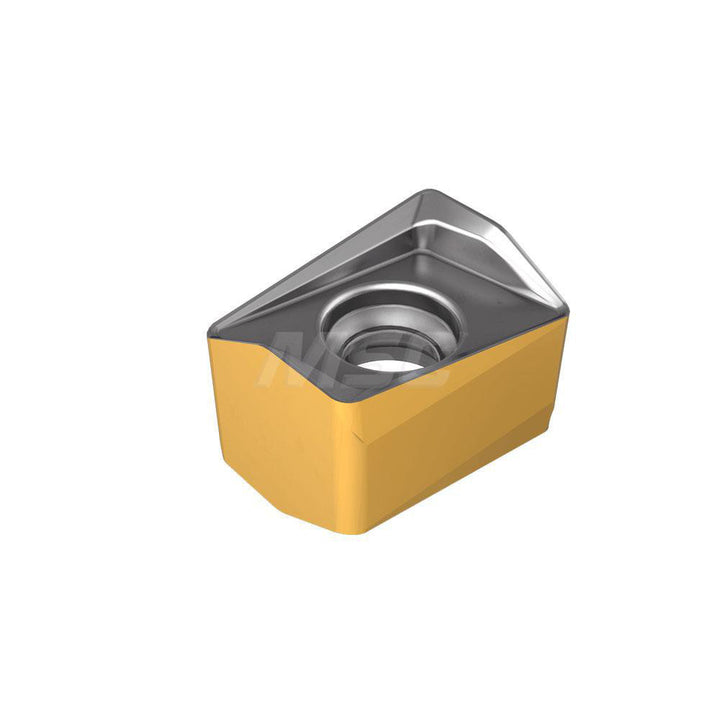

H490 ANCX 120508PDR Solid Carbide Insert, Grade IC808, TiAlN - Iscar 5606012
MFR# 5606012ISO/ANSI# H490 ANCX 120508PDRCat# H490 ANCX 120508PDR IC808Series HELIDO
$32.71List $41.90
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeIC808
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5606012 is a H490 ANCX 120508PDR solid carbide indexable insert, grade IC808, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Ansi codeH490 ANCX 120508PDR IC808
Chip breakerPDR
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityH490 ANK12
Cutting edge effective length0.3940
Cutting edge styleHelical
Included angle degree85
Inscribed circle0.3940
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size12
Insert size code120508
Insert styleANCX
Iso codeH490 ANCX 120508PDR
Length0.5382
Length range0.5000 to 0.6000
Manufacturers catalog numberH490 ANCX 120508PDR IC808
Manufacturer gradeIC808
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.3940
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.3720
Thickness range0.3500 to 0.5000
Width0.3940
