Iscar

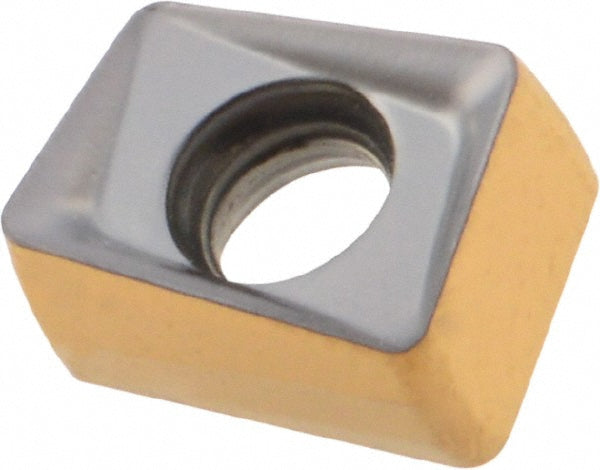

H490 ANKX 090408PNTR Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5606020
MFR# 5606020ISO/ANSI# H490 ANKX 090408PNTRCat# H490 ANKX 090408PNTR IC830Series HELIDO
$23.66List $30.30
Save 21%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeIC830
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 5606020 is a H490 ANKX 090408PNTR solid carbide indexable insert, grade IC830, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeH490 ANKX 090408PNTR IC830
Chip breakerPNTR
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityH490 ANK09
Cutting edge effective length0.3150
Cutting edge styleHelical
Included angle degree85
Inscribed circle0.2560
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size09
Insert size code090408
Insert styleANKX
Iso codeH490 ANKX 090408PNTR
Length0.3354
Length range0.3200 to 0.4000
Manufacturers catalog numberH490 ANKX 090408PNTR IC830
Manufacturer gradeIC830
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.3150
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.2050
Thickness range0.2000 to 0.2200
Width0.2560
