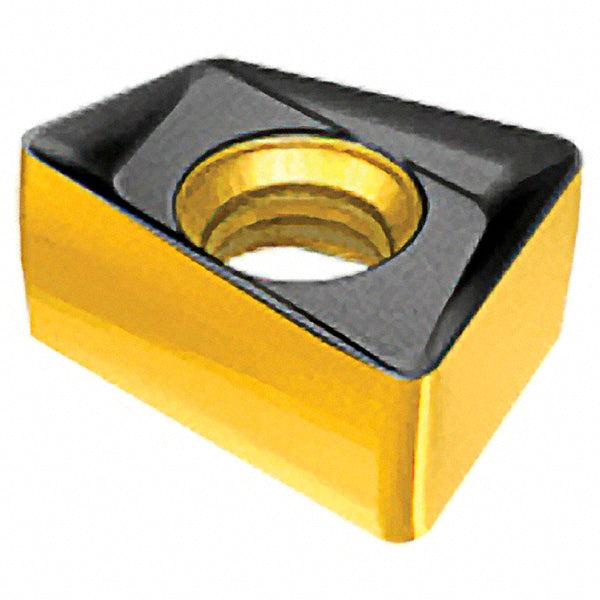

H490 ANKX 090408PNTR Solid Carbide Insert, Grade IC5100, TiCN - Iscar 5606021

Iscar

H490 ANKX 090408PNTR Solid Carbide Insert, Grade IC5100, TiCN - Iscar 5606021

MFR# 5606021ISO/ANSI# H490 ANKX 090408PNTRCat# H490 ANKX 090408PNTR IC5100Series HELIDO

$23.66List $30.30 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIC5100
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5606021 is a H490 ANKX 090408PNTR solid carbide indexable insert, grade IC5100, TiCN coated. Suited for cast iron.

Specifications

Ansi codeH490 ANKX 090408PNTR IC5100
Chip breakerPNTR
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityH490 ANK09
Cutting edge effective length0.3150
Cutting edge styleHelical
Included angle degree85
Inscribed circle0.2560
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size09
Insert size code090408
Insert styleANKX
Iso codeH490 ANKX 090408PNTR
Length0.3354
Length range0.3200 to 0.4000
Manufacturers catalog numberH490 ANKX 090408PNTR IC5100
Manufacturer gradeIC5100
Material applicationCast Iron
Maximum depth of cut0.3150
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.2050
Thickness range0.2000 to 0.2200
Width0.2560
