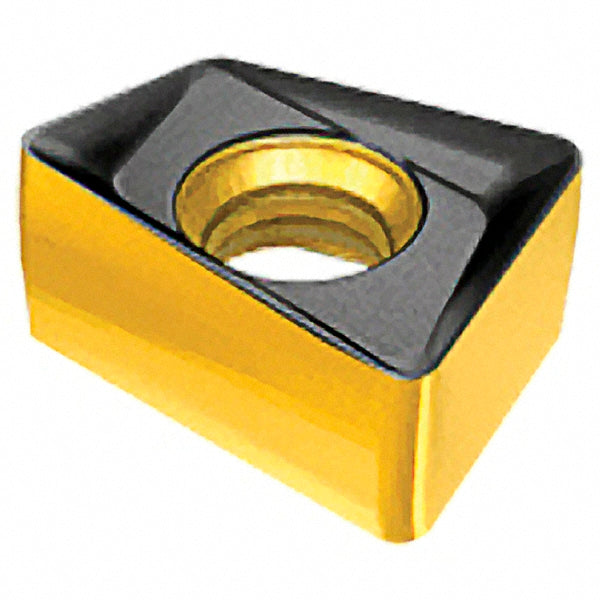

H490 ANCX 090408PDR Solid Carbide Insert, Grade IC330, TiCN - Iscar 5606026

Iscar

H490 ANCX 090408PDR Solid Carbide Insert, Grade IC330, TiCN - Iscar 5606026

MFR# 5606026ISO/ANSI# H490 ANCX 090408PDRCat# H490 ANCX 090408PDR IC330Series HELIDO

$30.30List $38.80 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIC330
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5606026 is a H490 ANCX 090408PDR solid carbide indexable insert, grade IC330, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeH490 ANCX 090408PDR IC330
Chip breakerPDR
Coating finishTiCN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityH490 ANK09
Cutting edge effective length0.3150
Cutting edge styleHelical
Included angle degree85
Inscribed circle0.2560
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size09
Insert size code090408
Insert styleANCX
Iso codeH490 ANCX 090408PDR
Length0.3354
Length range0.3200 to 0.4000
Manufacturers catalog numberH490 ANCX 090408PDR IC330
Manufacturer gradeIC330
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.3150
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.2050
Thickness range0.2000 to 0.2200
Width0.2560
