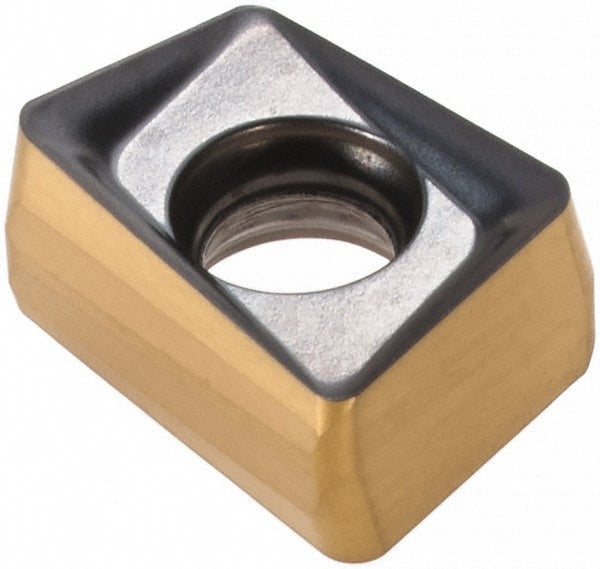

H490 ANCX 090408PDR Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5606027
MFR# 5606027ISO/ANSI# H490 ANCX 090408PDRCat# H490 ANCX 090408PDR IC830Series HELIDO
$30.84List $38.80
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
Sold in multiples of 10 — minimum order 10
Check price & lead time first →- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeIC830
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 5606027 is a H490 ANCX 090408PDR solid carbide indexable insert, grade IC830, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeH490 ANCX 090408PDR IC830
Chip breakerPDR
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityH490 ANK09
Cutting edge effective length0.3940
Cutting edge styleHelical
Included angle degree85
Inscribed circle0.2560
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size09
Insert size code090408
Insert styleANCX
Iso codeH490 ANCX 090408PDR
Length0.3354
Length range0.3200 to 0.4000
Manufacturers catalog numberH490 ANCX 090408PDR IC830
Manufacturer gradeIC830
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.3940
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.2050
Thickness range0.2000 to 0.2200
Width0.2560
