Iscar

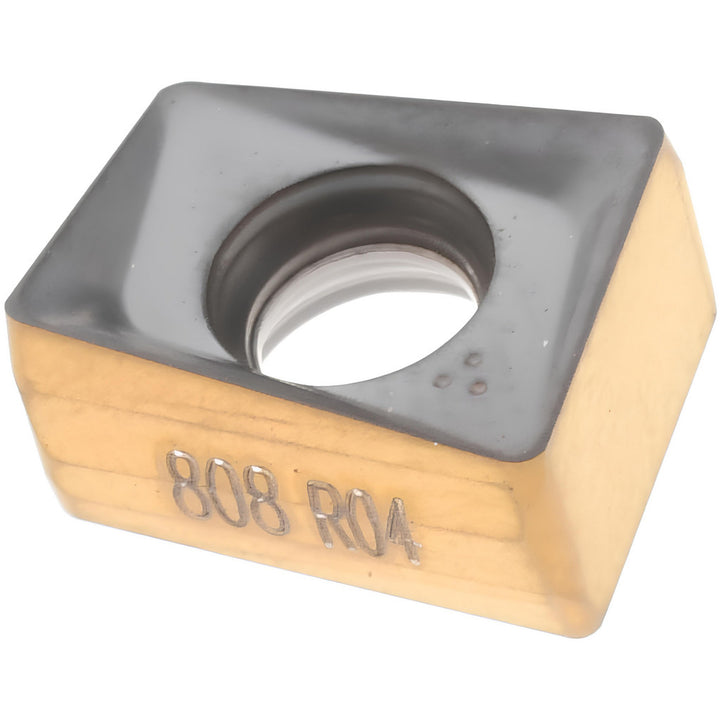

H490 ANCX 090404PDR Solid Carbide Insert, Grade IC808, TiAlN - Iscar 5606031
MFR# 5606031ISO/ANSI# H490 ANCX 090404PDRCat# H490 ANCX 090404PDR IC808Series HELIDO
$30.83List $38.80
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeIC808
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5606031 is a H490 ANCX 090404PDR solid carbide indexable insert, grade IC808, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Ansi codeH490 ANCX 090404PDR IC808
Chip breakerPDR
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutter series compatibilityH490 ANK09
Cutting edge effective length0.3150
Cutting edge styleHelical
Included angle degree85
Inscribed circle0.2560
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size09
Insert size code090404
Insert styleANCX
Iso codeH490 ANCX 090404PDR
Length0.3354
Length range0.3200 to 0.4000
Manufacturers catalog numberH490 ANCX 090404PDR IC808
Manufacturer gradeIC808
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.3150
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.2050
Thickness range0.2000 to 0.2200
Width0.2560
