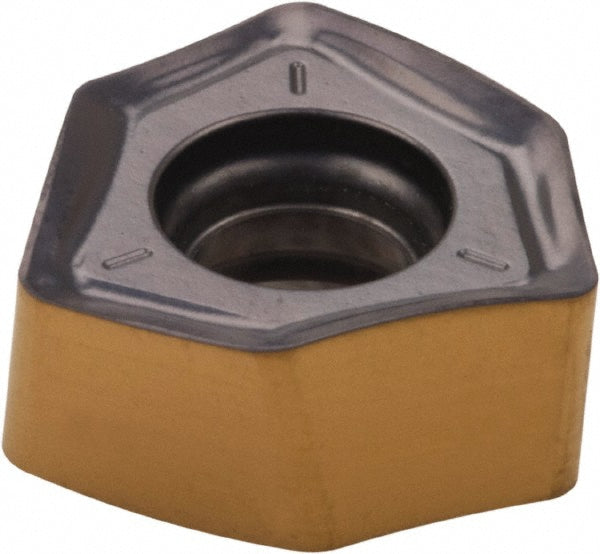

H600 WXCU 080612T Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5606035

Iscar

H600 WXCU 080612T Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5606035

MFR# 5606035ISO/ANSI# H600 WXCU 080612TCat# H600 WXCU 080612T IC830Series HELI6FEED

$36.47List $46.70 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeTrigon
GradeIC830
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 5606035 is a H600 WXCU 080612T solid carbide indexable insert, grade IC830, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeH600 WXCU 080612T IC830
Chip breakerT
Coating finishAlTiN
Coating processPVD
Corner radius in3/64
Cutter series compatibilityFWX
Cutting edge effective length0.3465
Cutting edge styleT-Land
Included angle degree80
Inscribed circle0.5374
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size08
Insert size code080612
Insert styleWXCU
Iso codeH600 WXCU 080612T
Length0.5374
Length range0.5000 to 0.6000
Manufacturers catalog numberH600 WXCU 080612T IC830
Manufacturer gradeIC830
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.3465
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.2680
Thickness range0.2500 to 0.3500
Width0.5374
