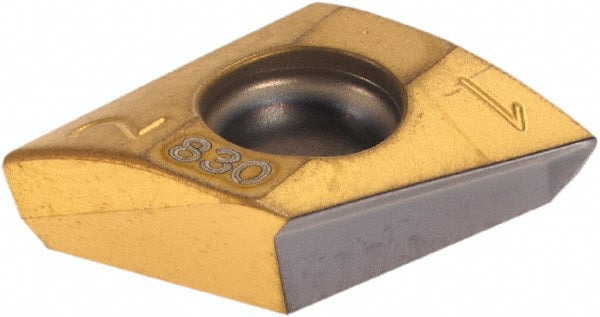

T290 LNMT 100405TR Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5606038

Iscar

T290 LNMT 100405TR Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5606038

MFR# 5606038ISO/ANSI# T290 LNMT 100405TRCat# T290 LNMT 100405TR IC830Series SUMOMILL

$24.28List $31.10 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeButterfly
GradeIC830
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 5606038 is a T290 LNMT 100405TR solid carbide indexable insert, grade IC830, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeT290 LNMT 100405TR IC830
Chip breakerTR
Coating finishAlTiN
Coating processPVD
Corner radius0.0197
Cutter series compatibilityT290
Cutting edge effective length0.4094
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.1610
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeButterfly
Insert size10
Insert size code100405
Insert styleLNMT
Iso codeT290 LNMT 100405TR
Length0.4094
Length range0.4000 to 0.4500
Manufacturers catalog numberT290 LNMT 100405TR IC830
Manufacturer gradeIC830
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.3940
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.3500
Thickness range0.2500 to 0.3500
Width0.1610
