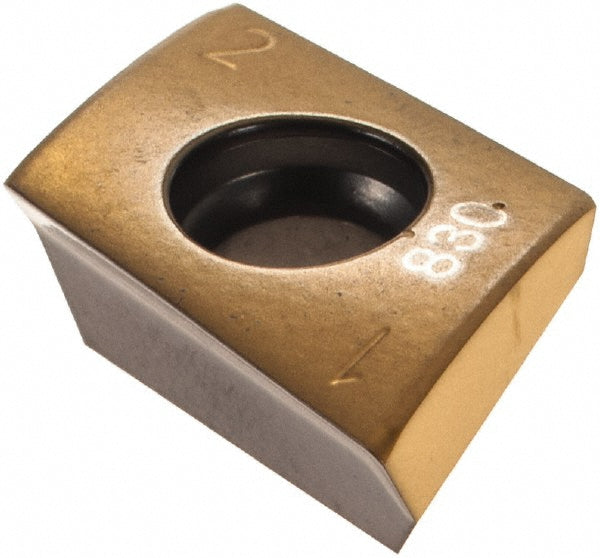

T290 LNMT 150608TR Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5606043

Iscar

T290 LNMT 150608TR Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5606043

MFR# 5606043ISO/ANSI# T290 LNMT 150608TRCat# T290 LNMT 150608TR IC830Series SUMOMILL

$28.97List $37.10 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeButterfly
GradeIC830
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 5606043 is a T290 LNMT 150608TR solid carbide indexable insert, grade IC830, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeT290 LNMT 150608TR IC830
Chip breakerTR
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityT290
Cutting edge effective length0.6260
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.2200
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeButterfly
Insert size15
Insert size code150608
Insert styleLNMT
Iso codeT290 LNMT 150608TR
Length0.6260
Length range0.6000 to 0.6500
Manufacturers catalog numberT290 LNMT 150608TR IC830
Manufacturer gradeIC830
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.5910
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness in29/64
Thickness range0.3500 to 0.5000
Width0.2200
