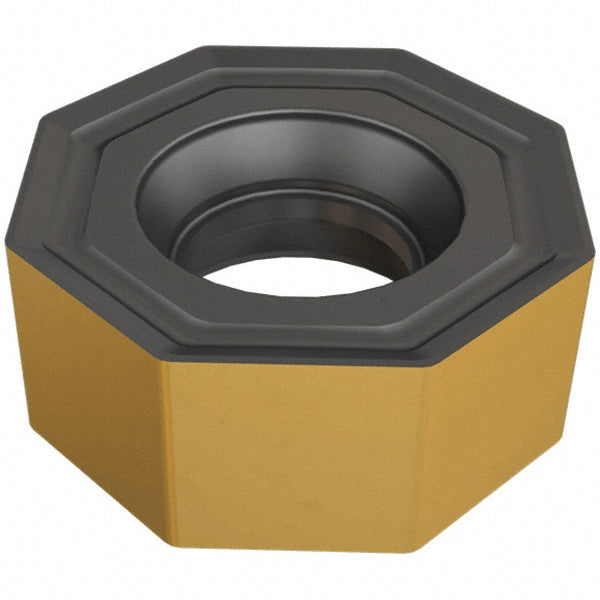

ONMU 050505-TN Solid Carbide Insert, Grade DT7150, Al2O3 - Iscar 5606052

Iscar

ONMU 050505-TN Solid Carbide Insert, Grade DT7150, Al2O3 - Iscar 5606052

MFR# 5606052ISO/ANSI# ONMU 050505-TNCat# ONMU 050505-TN DT7150Series HELIDO

$20.93List $26.80 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeOctagon
GradeDT7150
MaterialSolid Carbide
CoatingAl2O3

Description

The Iscar 5606052 is a ONMU 050505-TN solid carbide indexable insert, grade DT7150, Al2O3 coated. Suited for cast iron, hard material.

Specifications

Ansi codeONMU 050505-TN DT7150
Chip breakerTN
Coating finishAl2O3
Coating processMTCVD; PVD
Corner radius0.0197
Cutter series compatibilityFF SOF; SOF45; SOE45
Cutting edge effective length0.3940
Cutting edge styleT-Land
Included angle degree135
Inscribed circle0.5118
Inscribed circle range0.5100 to 0.6000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size05
Insert size code050505
Insert styleONMU
Iso codeONMU 050505-TN
Length0.5118
Length range0.5000 to 0.6000
Manufacturers catalog numberONMU 050505-TN DT7150
Manufacturer gradeDT7150
Material applicationCast Iron; Hard Material
Maximum depth of cut0.3940
Multi use toolYes
Number of cutting edges16
Primary workpiece materialCast Iron; Hard Material
RakeNegative
Rake angle26
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.2000
Thickness range0.2000 to 0.2200
Width0.5118
