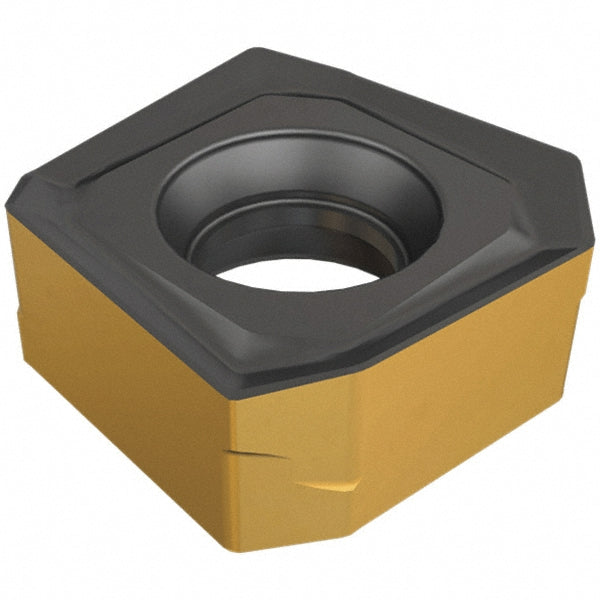

S845 SNMU 1305ANR-MM Solid Carbide Insert, Grade IC4050, TiCN - Iscar 5606055

Iscar

S845 SNMU 1305ANR-MM Solid Carbide Insert, Grade IC4050, TiCN - Iscar 5606055

MFR# 5606055ISO/ANSI# S845 SNMU 1305ANR-MMCat# S845 SNMU 1305ANR-MM 4050Series HELIDO

$23.82List $30.50 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeIC4050
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5606055 is a S845 SNMU 1305ANR-MM solid carbide indexable insert, grade IC4050, TiCN coated. Suited for steel, stainless steel, cast iron.

Specifications

Ansi codeS845 SNMU 1305ANR-MM 4050
Chip breakerMM
Coating finishTiCN
Coating processMTCVD
Corner radius0.0000
Cutter series compatibilitySOE45; SOF45
Cutting edge effective length0.2758
Cutting edge styleHelical
Included angle degree90
Inscribed circle0.5118
Inscribed circle range0.5100 to 0.6000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size13
Insert size code1305
Insert styleSNMU
Iso codeS845 SNMU 1305ANR-MM
Length0.5118
Length range0.5000 to 0.6000
Manufacturers catalog numberS845 SNMU 1305ANR-MM 4050
Manufacturer gradeIC4050
Material applicationSteel; Stainless Steel; Cast Iron
Maximum depth of cut0.2360
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakeNegative
Rake angle24
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.2440
Thickness range0.2350 to 0.2500
Width0.5120
