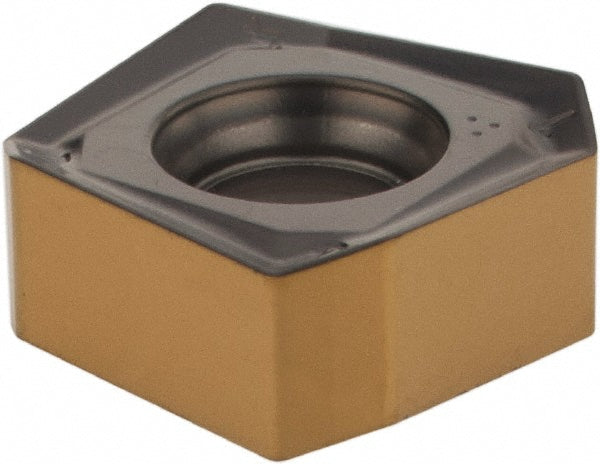

S845 SNMU 1305ANR-MM Solid Carbide Insert, Grade IC808, TiAlN - Iscar 5606056

Iscar

S845 SNMU 1305ANR-MM Solid Carbide Insert, Grade IC808, TiAlN - Iscar 5606056

MFR# 5606056ISO/ANSI# S845 SNMU 1305ANR-MMCat# S845 SNMU 1305ANR-MM IC808Series HELIDO

$27.26List $34.90 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeIC808
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5606056 is a S845 SNMU 1305ANR-MM solid carbide indexable insert, grade IC808, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Ansi codeS845 SNMU 1305ANR-MM IC808
Chip breakerMM
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilitySOE45; SOF45
Cutting edge effective length0.2758
Cutting edge styleHelical
Included angle degree90
Inscribed circle0.5118
Inscribed circle range0.5100 to 0.6000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size13
Insert size code1305
Insert styleSNMU
Iso codeS845 SNMU 1305ANR-MM
Length0.5118
Length range0.5000 to 0.6000
Manufacturers catalog numberS845 SNMU 1305ANR-MM IC808
Manufacturer gradeIC808
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.2360
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.2440
Thickness range0.2350 to 0.2500
Width0.5120
