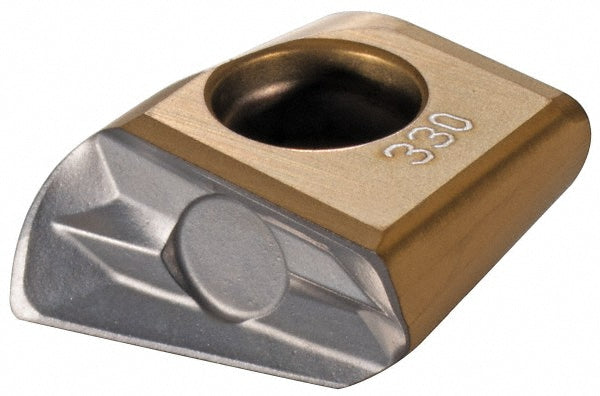

T490 LNHT 130664PNTR Solid Carbide Insert, Grade IC330, TiCN - Iscar 5606076
MFR# 5606076ISO/ANSI# T490 LNHT 130664PNTRCat# T490 LNHT 130664PNTR IC330Series HELITANG
$35.83List $45.10
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
Sold in multiples of 10 — minimum order 10
Check price & lead time first →- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeButterfly
GradeIC330
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5606076 is a T490 LNHT 130664PNTR solid carbide indexable insert, grade IC330, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeT490 LNHT 130664PNTR IC330
Chip breakerPNTR
Coating finishTiCN
Coating processPVD
Corner radius in1/4
Cutter series compatibilityT490 LNK13
Cutting edge effective length0.5366
Cutting edge styleHelical
Included angle degree90
Inscribed circle0.2620
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeButterfly
Insert size13
Insert size code130664
Insert styleLNHT
Iso codeT490 LNHT 130664PNTR
Length0.5366
Length range0.5000 to 0.6000
Manufacturers catalog numberT490 LNHT 130664PNTR IC330
Manufacturer gradeIC330
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.4920
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.4830
Thickness range0.3500 to 0.5000
Width0.2620
