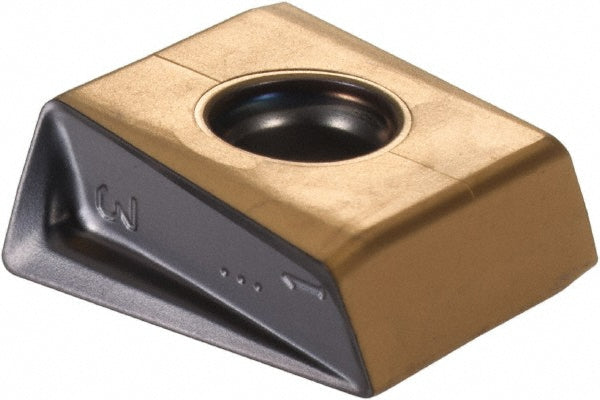

T490 LNMT 1607PN-R Solid Carbide Insert, Grade IC808, TiAlN - Iscar 5606093

Iscar

T490 LNMT 1607PN-R Solid Carbide Insert, Grade IC808, TiAlN - Iscar 5606093

MFR# 5606093ISO/ANSI# T490 LNMT 1607PN-RCat# T490 LNMT 1607PN-R IC808Series HELITANG

$31.07List $39.10 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Sold in multiples of 10 — minimum order 10

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeButterfly
GradeIC808
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5606093 is a T490 LNMT 1607PN-R solid carbide indexable insert, grade IC808, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Ansi codeT490 LNMT 1607PN-R IC808
Chip breakerR
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityT490 LNK16
Cutting edge effective length0.6713
Cutting edge styleHelical
Included angle degree90
Inscribed circle0.2760
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeButterfly
Insert size16
Insert size code1607
Insert styleLNMT
Iso codeT490 LNMT 1607PN-R
Length0.6713
Length range0.6500 to 0.7000
Manufacturers catalog numberT490 LNMT 1607PN-R IC808
Manufacturer gradeIC808
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.6300
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.6230
Thickness range0.5000+
Width0.2760
