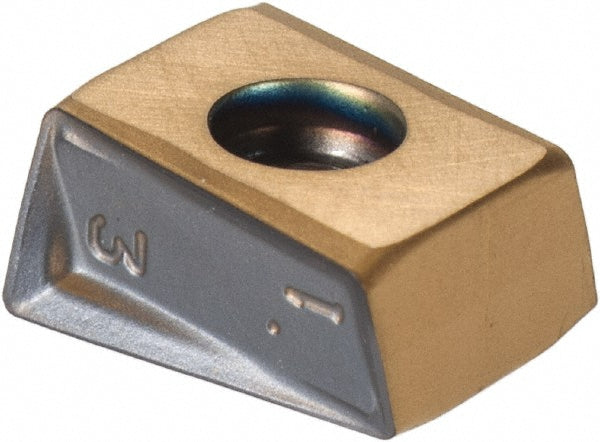

T490 LNMT 0804PNR Solid Carbide Insert, Grade IC810, AlTiCrN - Iscar 5606107

Iscar

T490 LNMT 0804PNR Solid Carbide Insert, Grade IC810, AlTiCrN - Iscar 5606107

MFR# 5606107ISO/ANSI# T490 LNMT 0804PNRCat# T490 LNMT 0804PNR IC810Series HELITANG

$25.68List $32.90 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeButterfly
GradeIC810
MaterialSolid Carbide
CoatingAlTiCrN

Description

The Iscar 5606107 is a T490 LNMT 0804PNR solid carbide indexable insert, grade IC810, AlTiCrN coated. Suited for steel, cast iron.

Specifications

Ansi codeT490 LNMT 0804PNR IC810
Chip breakerPNR
Coating finishAlTiCrN
Coating processPVD
Corner radius in1/64
Cutter series compatibilityT490 LNK08
Cutting edge effective length0.3382
Cutting edge styleHelical
Included angle degree90
Inscribed circle0.1670
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeButterfly
Insert size08
Insert size code0804
Insert styleLNMT
Iso codeT490 LNMT 0804PNR
Length0.3382
Length range0.3200 to 0.4000
Manufacturers catalog numberT490 LNMT 0804PNR IC810
Manufacturer gradeIC810
Material applicationSteel; Cast Iron
Maximum depth of cut0.3150
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.2930
Thickness range0.2500 to 0.3500
Width0.1670
