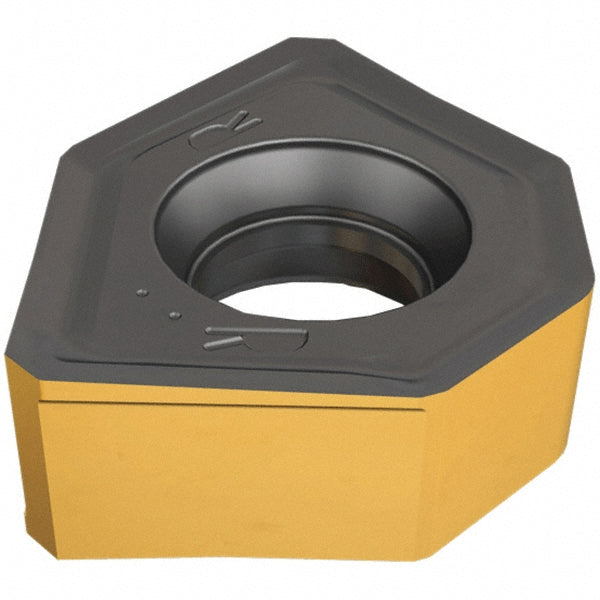

ONHU 0505AN-N-W Solid Carbide Insert, Grade IC810, AlTiCrN - Iscar 5606285

Iscar

ONHU 0505AN-N-W Solid Carbide Insert, Grade IC810, AlTiCrN - Iscar 5606285

MFR# 5606285ISO/ANSI# ONHU 0505AN-N-WCat# ONHU 0505AN-N-W IC810Series HELIDO

$36.10List $46.30 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeOctagon
GradeIC810
MaterialSolid Carbide
CoatingAlTiCrN

Description

The Iscar 5606285 is a ONHU 0505AN-N-W solid carbide indexable insert, grade IC810, AlTiCrN coated. Suited for steel, cast iron.

Specifications

Ansi codeONHU 0505AN-N-W IC810
Chip breakerW
Coating finishAlTiCrN
Coating processPVD
Corner radius0.0000
Cutter series compatibilityFF SOF; SOF45; SOE45
Cutting edge effective length0.3940
Cutting edge styleWiper
Included angle degree135
Inscribed circle0.5118
Inscribed circle range0.5100 to 0.6000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size05
Insert size code0505
Insert styleONHU
Iso codeONHU 0505AN-N-W
Length0.5118
Length range0.5000 to 0.6000
Manufacturers catalog numberONHU 0505AN-N-W IC810
Manufacturer gradeIC810
Material applicationSteel; Cast Iron
Maximum depth of cut0.3940
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Cast Iron
RakeNegative
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.1930
Thickness range0.1850 to 0.2000
Width0.5118
