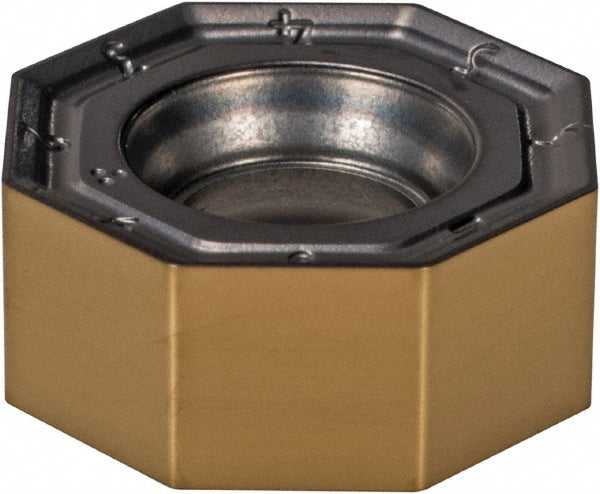

ONHU 050505-TN-MM Solid Carbide Insert, Grade IC808, TiAlN - Iscar 5606288
MFR# 5606288ISO/ANSI# ONHU 050505-TN-MMCat# ONHU 050505-TN-MM IC808Series HELIDO
$33.57List $43.00
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeOctagon
GradeIC808
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5606288 is a ONHU 050505-TN-MM solid carbide indexable insert, grade IC808, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Ansi codeONHU 050505-TN-MM IC808
Chip breakerMM
Coating finishTiAlN
Coating processPVD
Corner radius0.0197
Cutter series compatibilityFF SOF; SOF45; SOE45
Cutting edge effective length0.1380
Cutting edge styleT-Land
Included angle degree135
Inscribed circle0.5118
Inscribed circle range0.5100 to 0.6000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size05
Insert size code050505
Insert styleONHU
Iso codeONHU 050505-TN-MM
Length0.5118
Length range0.5000 to 0.6000
Manufacturers catalog numberONHU 050505-TN-MM IC808
Manufacturer gradeIC808
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.1380
Multi use toolYes
Number of cutting edges16
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakeNegative
Rake angle26
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.2000
Thickness range0.2000 to 0.2200
Width0.5118
