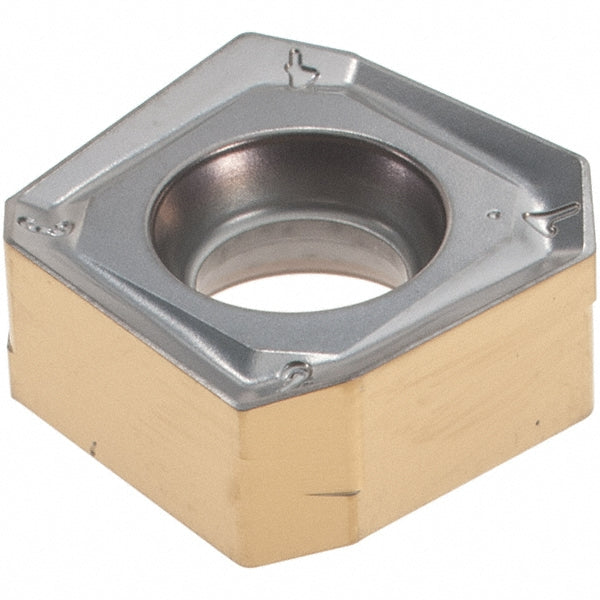

S845 SNHU 1305ANR-MM Solid Carbide Insert, Grade IC330, TiCN - Iscar 5606298

Iscar

S845 SNHU 1305ANR-MM Solid Carbide Insert, Grade IC330, TiCN - Iscar 5606298

MFR# 5606298ISO/ANSI# S845 SNHU 1305ANR-MMCat# S845 SNHU 1305ANR-MM IC330Series HELIDO

$34.21List $43.80 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeIC330
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5606298 is a S845 SNHU 1305ANR-MM solid carbide indexable insert, grade IC330, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeS845 SNHU 1305ANR-MM IC330
Chip breakerMM
Coating finishTiCN
Coating processPVD
Corner radius in1/32
Cutter series compatibilitySOE45; SOF45
Cutting edge effective length0.4805
Cutting edge styleHelical
Included angle degree90
Inscribed circle0.5118
Inscribed circle range0.5100 to 0.6000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size13
Insert size code1305
Insert styleSNHU
Iso codeS845 SNHU 1305ANR-MM
Length0.5120
Length range0.5000 to 0.6000
Manufacturers catalog numberS845 SNHU 1305ANR-MM IC330
Manufacturer gradeIC330
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.2360
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle24
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.2440
Thickness range0.2350 to 0.2500
Width0.5120
