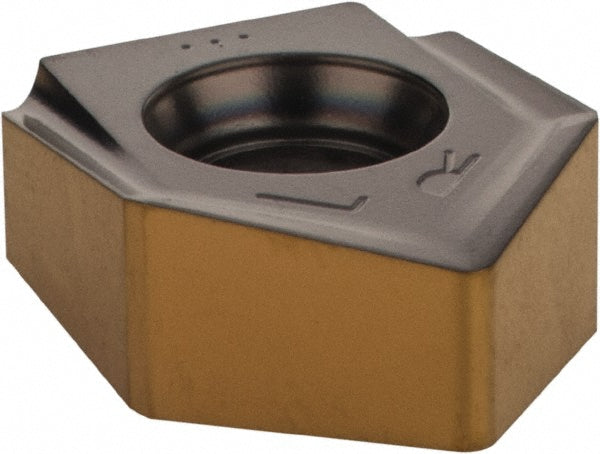

S845 SNHU 1305AN-N-W Solid Carbide Insert, Grade IC808, TiAlN - Iscar 5606300

Iscar

S845 SNHU 1305AN-N-W Solid Carbide Insert, Grade IC808, TiAlN - Iscar 5606300

MFR# 5606300ISO/ANSI# S845 SNHU 1305AN-N-WCat# S845 SNHU 1305AN-N-W IC808Series HELIDO

$37.64List $48.20 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeIC808
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5606300 is a S845 SNHU 1305AN-N-W solid carbide indexable insert, grade IC808, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Ansi codeS845 SNHU 1305AN-N-W IC808
Chip breakerW
Coating finishTiAlN
Coating processPVD
Corner radius0.0000
Cutter series compatibilitySOE45; SOF45
Cutting edge effective length0.5118
Cutting edge styleHelical
Included angle degree90
Inscribed circle0.5118
Inscribed circle range0.5100 to 0.6000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size13
Insert size code1305
Insert styleSNHU
Iso codeS845 SNHU 1305AN-N-W
Length0.5118
Length range0.5000 to 0.6000
Manufacturers catalog numberS845 SNHU 1305AN-N-W IC808
Manufacturer gradeIC808
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.2360
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.2320
Thickness range0.2200 to 0.2350
Width0.5118
