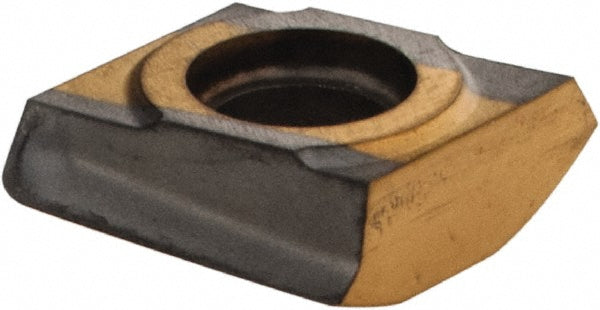

T290 LNMT 050204TR Solid Carbide Insert, Grade IC330, TiCN - Iscar 5606316

Iscar

T290 LNMT 050204TR Solid Carbide Insert, Grade IC330, TiCN - Iscar 5606316

MFR# 5606316ISO/ANSI# T290 LNMT 050204TRCat# T290 LNMT 050204TR IC330Series SUMOMILL

$19.83List $25.40 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeButterfly
GradeIC330
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5606316 is a T290 LNMT 050204TR solid carbide indexable insert, grade IC330, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeT290 LNMT 050204TR IC330
Chip breakerTR
Coating finishTiCN
Coating processPVD
Corner radius in1/64
Cutter series compatibilityT290
Cutting edge effective length0.2264
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.1060
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeButterfly
Insert size05
Insert size code050204
Insert styleLNMT
Iso codeT290 LNMT 050204TR
Length0.2264
Length range0.0000 to 0.3200
Manufacturers catalog numberT290 LNMT 050204TR IC330
Manufacturer gradeIC330
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.1970
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.2300
Thickness range0.2200 to 0.2350
Width0.1060
