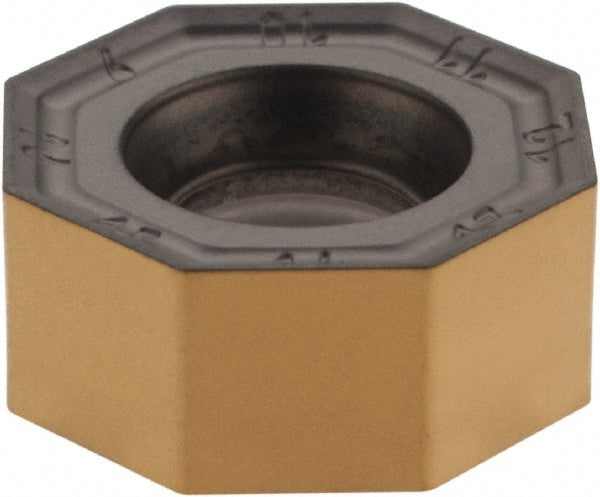

ONMU 050505-TN-MM Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5606332

Iscar

ONMU 050505-TN-MM Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5606332

MFR# 5606332ISO/ANSI# ONMU 050505-TN-MMCat# ONMU 050505-TN-MM IC830Series HELIDO

$26.16List $33.50 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeOctagon
GradeIC830
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 5606332 is a ONMU 050505-TN-MM solid carbide indexable insert, grade IC830, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeONMU 050505-TN-MM IC830
Chip breakerMM
Coating finishAlTiN
Coating processPVD
Corner radius0.0197
Cutter series compatibilityFF SOF; SOF45; SOE45
Cutting edge effective length0.1380
Cutting edge styleT-Land
Included angle degree135
Inscribed circle0.5118
Inscribed circle range0.5100 to 0.6000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size05
Insert size code050505
Insert styleONMU
Iso codeONMU 050505-TN-MM
Length0.5118
Length range0.5000 to 0.6000
Manufacturers catalog numberONMU 050505-TN-MM IC830
Manufacturer gradeIC830
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.1380
Multi use toolYes
Number of cutting edges16
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.2000
Thickness range0.2000 to 0.2200
Width0.5118
