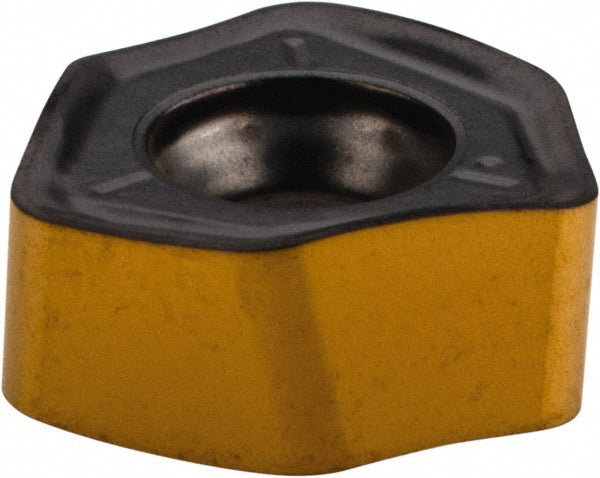

H600 WXCU 05T312T Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5606349

Iscar

H600 WXCU 05T312T Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5606349

MFR# 5606349ISO/ANSI# H600 WXCU 05T312TCat# H600 WXCU 05T312T IC830Series HELI6FEED

$32.95List $42.20 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC21/64
ShapeTrigon
GradeIC830
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 5606349 is a H600 WXCU 05T312T solid carbide indexable insert, grade IC830, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeH600 WXCU 05T312T IC830
Chip breakerT
Coating finishAlTiN
Coating processPVD
Corner radius in3/64
Cutter series compatibilityFWX; EWX
Cutting edge effective length0.2165
Cutting edge styleT-Land
Included angle degree80
Inscribed circle in21/64
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size05
Insert size code05T312
Insert styleWXCU
Iso codeH600 WXCU 05T312T
Length in21/64
Length range0.3200 to 0.4000
Manufacturers catalog numberH600 WXCU 05T312T IC830
Manufacturer gradeIC830
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.2165
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.1650
Thickness range0.1500 to 0.1750
Width in21/64
