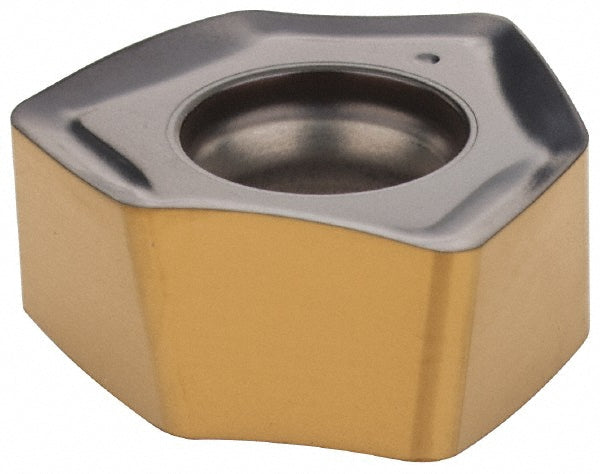

H600 WXCU 080612HP Solid Carbide Insert, Grade IC808, TiAlN - Iscar 5606350

Iscar

H600 WXCU 080612HP Solid Carbide Insert, Grade IC808, TiAlN - Iscar 5606350

MFR# 5606350ISO/ANSI# H600 WXCU 080612HPCat# H600 WXCU 080612HP IC808Series HELI6FEED

$37.11List $46.70 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Sold in multiples of 10 — minimum order 10

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeTrigon
GradeIC808
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5606350 is a H600 WXCU 080612HP solid carbide indexable insert, grade IC808, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Ansi codeH600 WXCU 080612HP IC808
Chip breakerHP
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutter series compatibilityFWX
Cutting edge effective length0.3465
Cutting edge styleSharp
Included angle degree80
Inscribed circle0.5374
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size08
Insert size code080612
Insert styleWXCU
Iso codeH600 WXCU 080612HP
Length0.5374
Length range0.5000 to 0.6000
Manufacturers catalog numberH600 WXCU 080612HP IC808
Manufacturer gradeIC808
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.3465
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.2680
Thickness range0.2500 to 0.3500
Width0.5374
