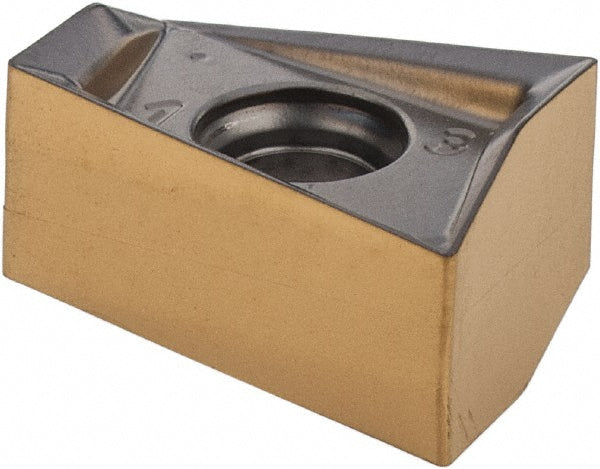

H490 ANKX 170604PNTR Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5606355

Iscar

H490 ANKX 170604PNTR Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5606355

MFR# 5606355ISO/ANSI# H490 ANKX 170604PNTRCat# H490 ANKX 170604PNTR IC830Series HELIDO

$30.45List $39.00 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIC830
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 5606355 is a H490 ANKX 170604PNTR solid carbide indexable insert, grade IC830, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeH490 ANKX 170604PNTR IC830
Chip breakerPNTR
Coating finishAlTiN
Coating processPVD
Corner radius in1/64
Cutter series compatibilityH490 ANK17
Cutting edge effective length0.6300
Cutting edge styleHelical
Included angle degree85
Inscribed circle0.4410
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size17
Insert size code170604
Insert styleANKX
Iso codeH490 ANKX 170604PNTR
Length0.6575
Length range0.6500 to 0.7000
Manufacturers catalog numberH490 ANKX 170604PNTR IC830
Manufacturer gradeIC830
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.6300
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.4090
Thickness range0.3500 to 0.5000
Width0.4410
