Iscar

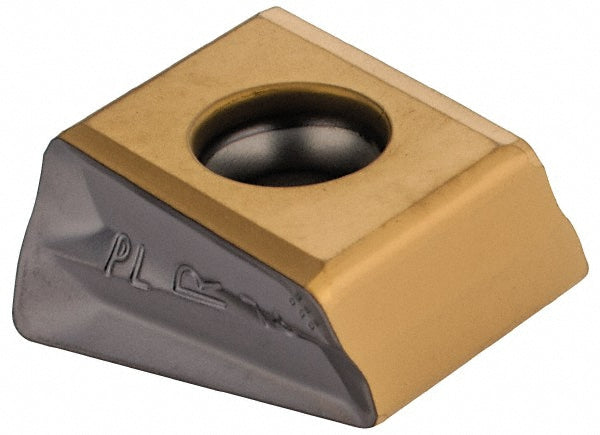

T490 LNHT 1306PN-R-PL Solid Carbide Insert, Grade IC808, TiAlN - Iscar 5606365
MFR# 5606365ISO/ANSI# T490 LNHT 1306PN-R-PLCat# T490 LNHT 1306PN-R-PL IC808Series HELITANG
$35.21List $45.10
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeButterfly
GradeIC808
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5606365 is a T490 LNHT 1306PN-R-PL solid carbide indexable insert, grade IC808, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Ansi codeT490 LNHT 1306PN-R-PL IC808
Chip breakerPL
Coating finishTiAlN
Coating processPVD
Corner radius0.0335
Cutter series compatibilityT490 LNK13
Cutting edge effective length0.5437
Cutting edge styleHelical
Included angle degree90
Inscribed circle0.2620
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeButterfly
Insert size13
Insert size code1306
Insert styleLNHT
Iso codeT490 LNHT 1306PN-R-PL
Length0.5437
Length range0.5000 to 0.6000
Manufacturers catalog numberT490 LNHT 1306PN-R-PL IC808
Manufacturer gradeIC808
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.4920
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.5140
Thickness range0.5000+
Width0.2620
