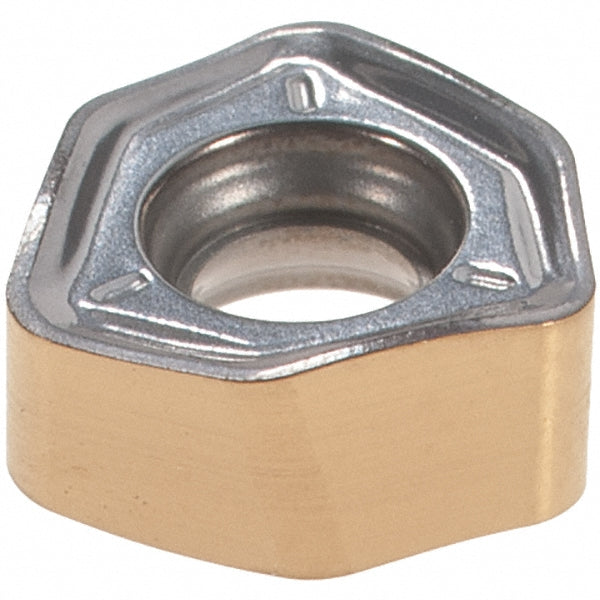

H600 WXCU 040310T Solid Carbide Insert, Grade IC808, TiAlN - Iscar 5606379
MFR# 5606379ISO/ANSI# H600 WXCU 040310TCat# H600 WXCU 040310T IC808Series HELI6FEED
$30.14List $38.60
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTrigon
GradeIC808
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5606379 is a H600 WXCU 040310T solid carbide indexable insert, grade IC808, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Ansi codeH600 WXCU 040310T IC808
Chip breakerT
Coating finishTiAlN
Coating processPVD
Corner radius0.0378
Cutter series compatibilityEWX
Cutting edge effective length0.1626
Cutting edge styleT-Land
Included angle degree80
Inscribed circle0.2461
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size04
Insert size code040310
Insert styleWXCU
Iso codeH600 WXCU 040310T
Length0.2461
Length range0.0000 to 0.3200
Manufacturers catalog numberH600 WXCU 040310T IC808
Manufacturer gradeIC808
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.1626
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.1220
Thickness range0.1000 to 0.1250
Width0.2461
