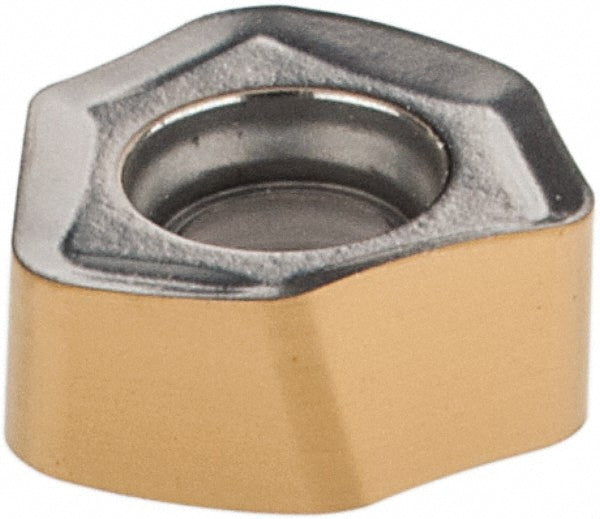

H600 WXCU 040310HP Solid Carbide Insert, Grade IC330, TiCN - Iscar 5606382

Iscar

H600 WXCU 040310HP Solid Carbide Insert, Grade IC330, TiCN - Iscar 5606382

MFR# 5606382ISO/ANSI# H600 WXCU 040310HPCat# H600 WXCU 040310HP IC330Series HELI6FEED

$30.14List $38.60 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeTrigon
GradeIC330
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5606382 is a H600 WXCU 040310HP solid carbide indexable insert, grade IC330, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeH600 WXCU 040310HP IC330
Chip breakerHP
Coating finishTiCN
Coating processPVD
Corner radius0.0378
Cutter series compatibilityEWX
Cutting edge effective length0.1626
Cutting edge styleSharp
Included angle degree80
Inscribed circle0.2461
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size04
Insert size code040310
Insert styleWXCU
Iso codeH600 WXCU 040310HP
Length0.2461
Length range0.0000 to 0.3200
Manufacturers catalog numberH600 WXCU 040310HP IC330
Manufacturer gradeIC330
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.1626
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle28
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.1220
Thickness range0.1000 to 0.1250
Width0.2461
