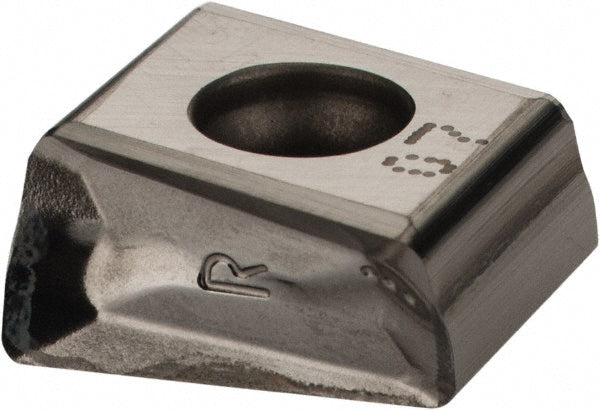

T490 LNAR 1306PN-R-P Solid Carbide Insert, Grade IC07 - Iscar 5606389

Iscar

T490 LNAR 1306PN-R-P Solid Carbide Insert, Grade IC07 - Iscar 5606389

MFR# 5606389ISO/ANSI# T490 LNAR 1306PN-R-PCat# T490 LNAR 1306PN-R-P IC07Series HELITANG

$29.91List $38.30 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeButterfly
GradeIC07
MaterialSolid Carbide

Description

The Iscar 5606389 is a T490 LNAR 1306PN-R-P solid carbide indexable insert, grade IC07. Suited for stainless steel, non-ferrous metal, superalloys & titanium.

Specifications

Ansi codeT490 LNAR 1306PN-R-P IC07
Chip breakerP
Coating processUncoated
Corner radius in1/32
Cutter series compatibilityT490 LNK13
Cutting edge effective length0.4920
Cutting edge styleHelical
Included angle degree90
Inscribed circle0.2620
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeButterfly
Insert size13
Insert size code1306
Insert styleLNAR
Iso codeT490 LNAR 1306PN-R-P
Length0.5437
Length range0.5000 to 0.6000
Manufacturers catalog numberT490 LNAR 1306PN-R-P IC07
Manufacturer gradeIC07
Material applicationStainless Steel; Non-Ferrous Metal; Superalloys & Titanium
Material gradeSubmicron
Maximum depth of cut0.4920
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Non-Ferrous Metal; Superalloys & Titanium
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.5120
Thickness range0.5000+
Width0.2620
