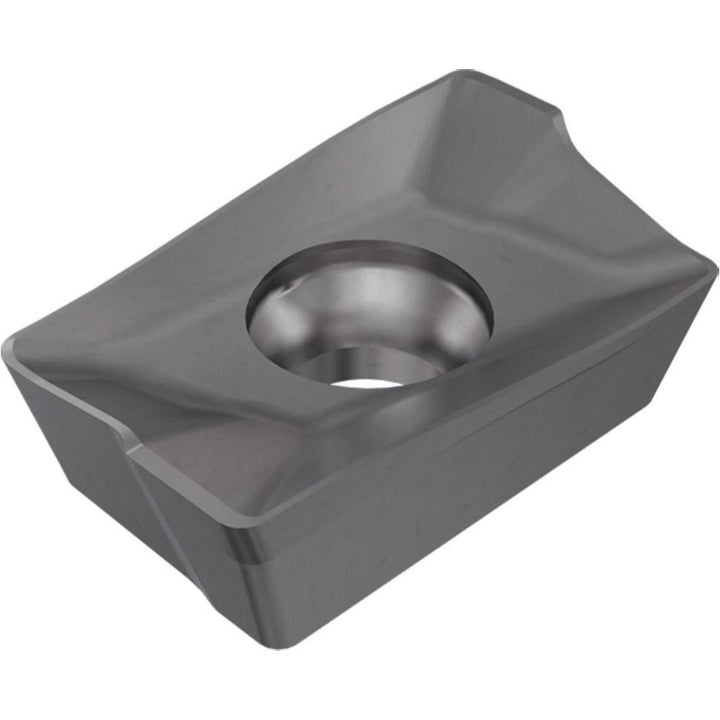

HM90 APKT 1003PDR Solid Carbide Insert, Grade IC810, AlTiCrN - Iscar 5606395

Iscar

HM90 APKT 1003PDR Solid Carbide Insert, Grade IC810, AlTiCrN - Iscar 5606395

MFR# 5606395ISO/ANSI# HM90 APKT 1003PDRCat# HM90 APKT 1003PDR IC810Series HELI2000

$20.69List $26.50 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC17/64
ShapeParallelogram
GradeIC810
MaterialSolid Carbide
CoatingAlTiCrN

Description

The Iscar 5606395 is a HM90 APKT 1003PDR solid carbide indexable insert, grade IC810, AlTiCrN coated. Suited for steel, cast iron.

Specifications

Ansi codeHM90 APKT 1003PDR IC810
Chip breakerPDR
Coating finishAlTiCrN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityHM90-10
Cutting edge effective length0.4040
Cutting edge styleHoned
Included angle degree85
Inscribed circle in17/64
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code1003
Insert styleAPKT
Iso codeHM90 APKT 1003PDR
Length0.4510
Length range0.4500 to 0.5000
Manufacturers catalog numberHM90 APKT 1003PDR IC810
Manufacturer gradeIC810
Material applicationSteel; Cast Iron
Maximum depth of cut0.3940
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle23
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1390
Thickness range0.1250 to 0.1500
Width in17/64
