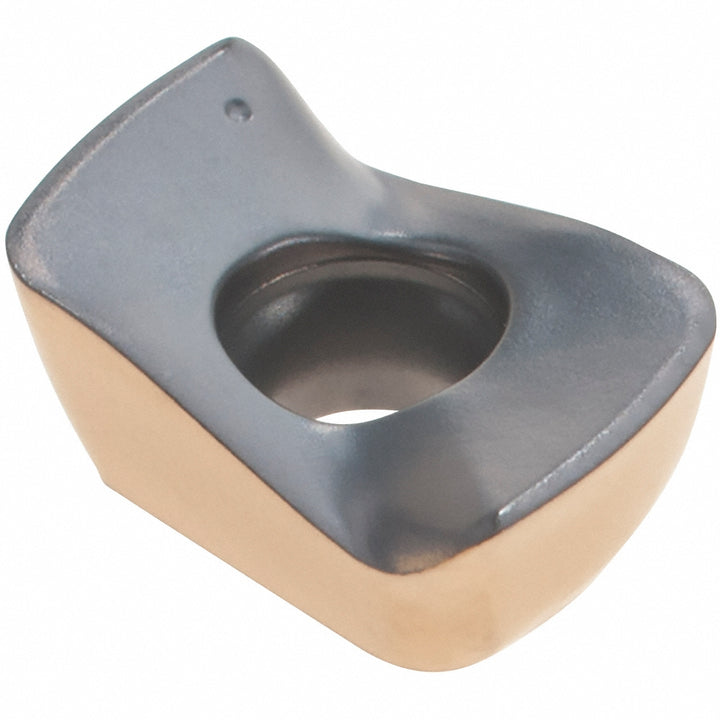

APKT 1003R8T-FF Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5606397

Iscar

APKT 1003R8T-FF Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5606397

MFR# 5606397ISO/ANSI# APKT 1003R8T-FFCat# APKT 1003R8T-FF IC830Series HELIMILL

$24.44List $31.30 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIC830
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 5606397 is a APKT 1003R8T-FF solid carbide indexable insert, grade IC830, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeAPKT 1003R8T-FF IC830
Chip breakerFF
Coating finishAlTiN
Coating processPVD
Corner radius0.0748
Cutter series compatibilityHM90-10
Cutting edge effective length0.4250
Cutting edge styleRounded
Included angle degree85
Inscribed circle0.2600
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code1003
Insert styleAPKT
Iso codeAPKT 1003R8T-FF
Length0.4250
Length range0.4000 to 0.4500
Manufacturers catalog numberAPKT 1003R8T-FF IC830
Manufacturer gradeIC830
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.0390
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle11
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1380
Thickness range0.1250 to 0.1500
Width0.2600
