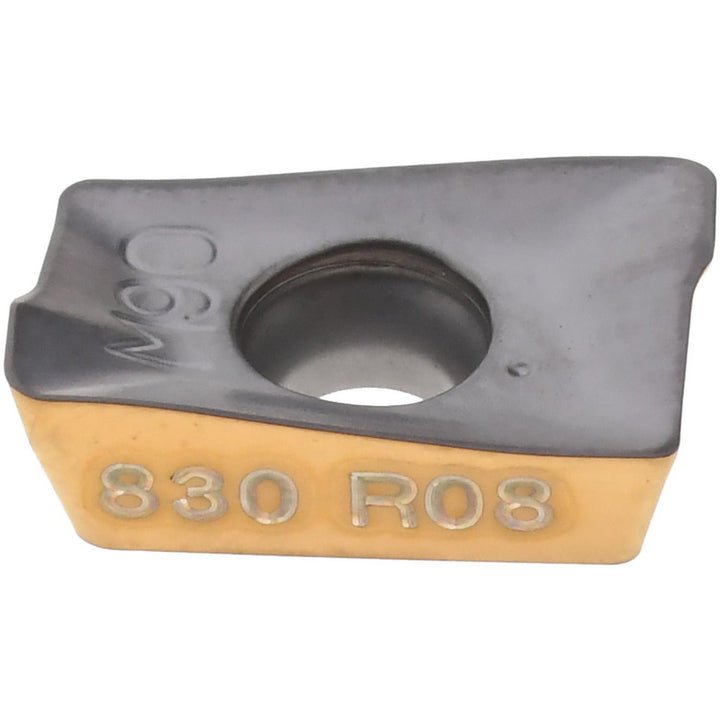

HM90 APKT 100308R Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5606398

Iscar

HM90 APKT 100308R Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5606398

MFR# 5606398ISO/ANSI# HM90 APKT 100308RCat# HM90 APKT 100308R IC830Series HELI2000

$20.69List $26.50 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC17/64
ShapeParallelogram
GradeIC830
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 5606398 is a HM90 APKT 100308R solid carbide indexable insert, grade IC830, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeHM90 APKT 100308R IC830
Chip breakerR
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityHM90-10
Cutting edge effective length0.4050
Cutting edge styleHoned
Included angle degree85
Inscribed circle in17/64
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code100308R
Insert styleAPKT
Iso codeHM90 APKT 100308R
Length0.4510
Length range0.4500 to 0.5000
Manufacturers catalog numberHM90 APKT 100308R IC830
Manufacturer gradeIC830
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.3860
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle17
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1390
Thickness range0.1250 to 0.1500
Width in17/64
