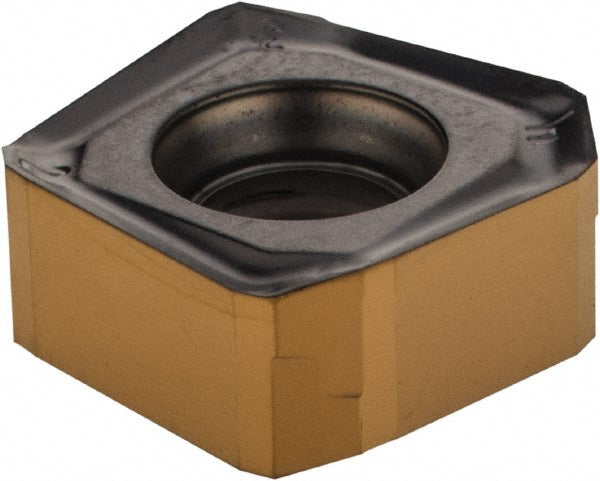

S845 SNHU 1305ANR-PL Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5606443

Iscar

S845 SNHU 1305ANR-PL Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5606443

MFR# 5606443ISO/ANSI# S845 SNHU 1305ANR-PLCat# S845 SNHU 1305ANR-PL IC830Series HELIDO

$34.21List $43.80 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeIC830
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 5606443 is a S845 SNHU 1305ANR-PL solid carbide indexable insert, grade IC830, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeS845 SNHU 1305ANR-PL IC830
Chip breakerPL
Coating finishAlTiN
Coating processPVD
Corner radius0.0000
Cutter series compatibilitySOE45; SOF45
Cutting edge effective length0.5120
Cutting edge styleHelical
Included angle degree90
Inscribed circle0.5118
Inscribed circle range0.5100 to 0.6000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size13
Insert size code1305
Insert styleSNHU
Iso codeS845 SNHU 1305ANR-PL
Length0.5120
Length range0.5000 to 0.6000
Manufacturers catalog numberS845 SNHU 1305ANR-PL IC830
Manufacturer gradeIC830
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.2360
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle26
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.2360
Thickness range0.2350 to 0.2500
Width0.5120
