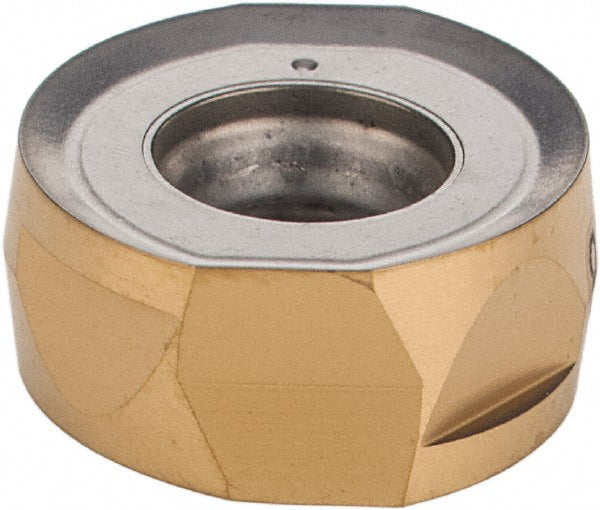

H400 RNHU 1205-HP Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5606449
MFR# 5606449ISO/ANSI# H400 RNHU 1205-HPCat# H400 RNHU 1205-HP IC830Series HELIDO
$24.08List $30.30
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
GradeIC830
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 5606449 is a H400 RNHU 1205-HP solid carbide indexable insert, grade IC830, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeH400 RNHU 1205-HP IC830
Chip breakerHP
Coating finishAlTiN
Coating processPVD
Corner radius0.2362
Cutter series compatibilityH400-12
Cutting edge effective length0.4720
Cutting edge styleContinuous
Included angle degree360
Inscribed circle0.4330
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size12
Insert size code1205
Insert styleRNHU
Iso codeH400 RNHU 1205-HP
Length0.4720
Length range0.4500 to 0.5000
Manufacturers catalog numberH400 RNHU 1205-HP IC830
Manufacturer gradeIC830
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.2362
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle14
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.1870
Thickness range0.1850 to 0.2000
Width0.4720
