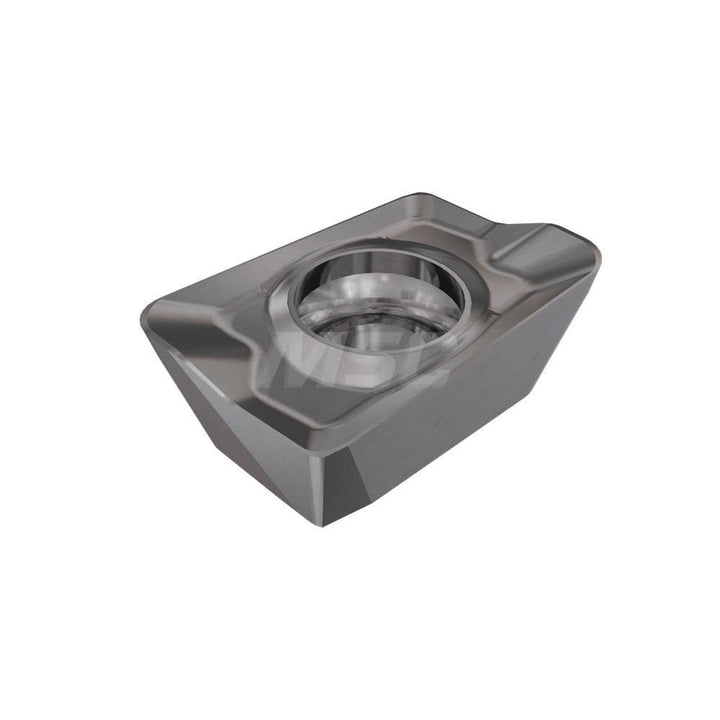

ADKT 150564R-HM Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5606473

Iscar

ADKT 150564R-HM Solid Carbide Insert, Grade IC830, AlTiN - Iscar 5606473

MFR# 5606473ISO/ANSI# ADKT 150564R-HMCat# ADKT 150564R-HM IC830Series HELIMILL

$26.00List $33.30 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIC830
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 5606473 is a ADKT 150564R-HM solid carbide indexable insert, grade IC830, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeADKT 150564R-HM IC830
Chip breakerHM
Coating finishAlTiN
Coating processPVD
Corner radius0.2441
Cutter series compatibilityETS; FTS; ADK; E90
Cutting edge effective length0.5200
Cutting edge styleHoned
Included angle degree85
Inscribed circle0.3770
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size15
Insert size code150564
Insert styleADKT
Iso codeADKT 150564R-HM
Length0.5830
Length range0.5000 to 0.6000
Manufacturers catalog numberADKT 150564R-HM IC830
Manufacturer gradeIC830
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.5120
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle20
Relief angle15
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2090
Thickness range0.2000 to 0.2200
Width0.3770
